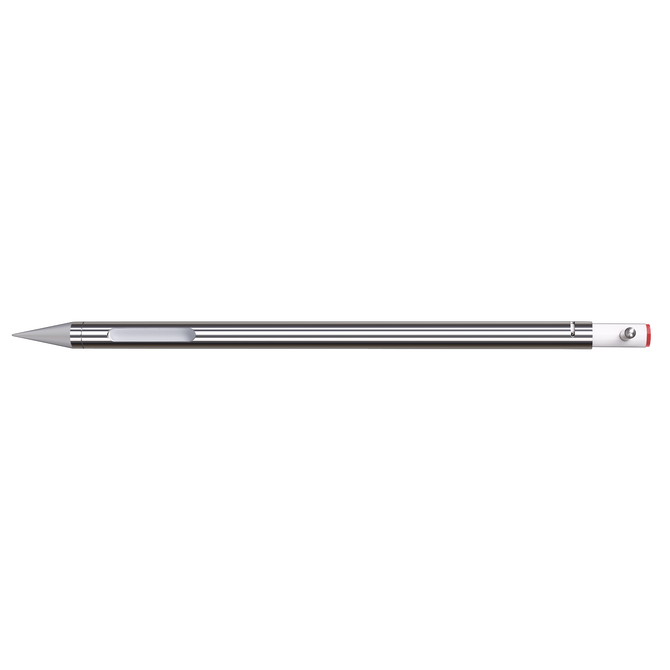

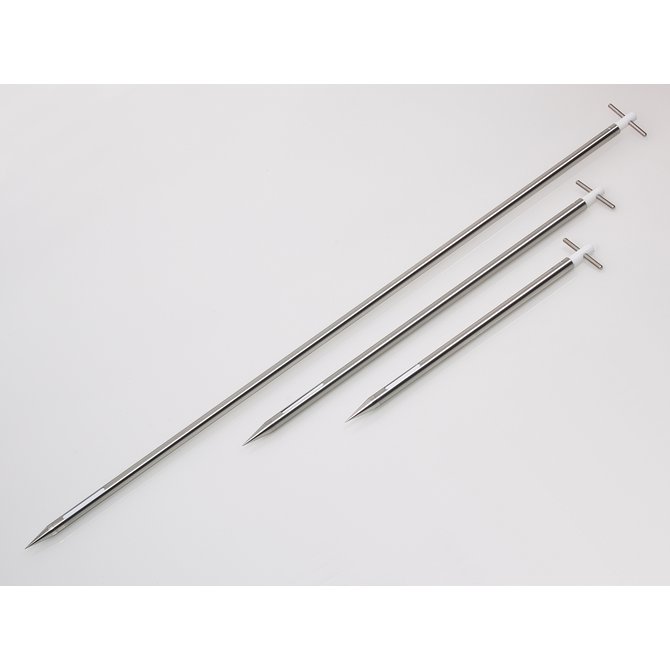

The single chamber Uno target point sampler is designed to take a targeted sample from an area or layer of a wide variety of bulk materials.

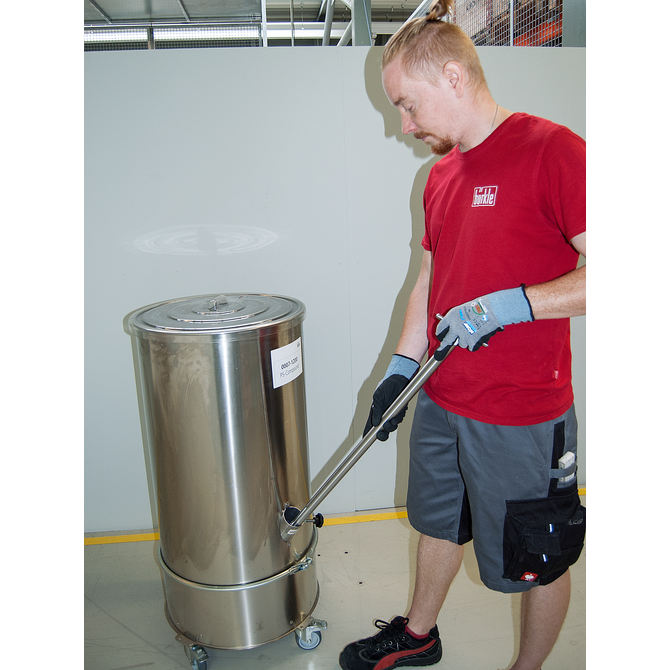

The zone sampler allows a sample to be taken from a desired depth or zone within a bag, drum, silo, big bag or pile.
Once taken, the target point sample can be analysed individually, e.g. to investigate variability within a material or between different layers of material, or multiple target point samples can be taken to produce a composite sample that is representative of the whole material. This method ensures that the final sample is representative, i.e. reflects the average composition of the material, which is essential for correct analysis and quality control.

The Uno sampler in stainless steel 1.4404 (V4A) with PTFE core combines the advantages of the robust and inert stainless steel sampler with the lighter weight of PTFE. The zone sampler is extremely robust and has excellent chemical resistance.

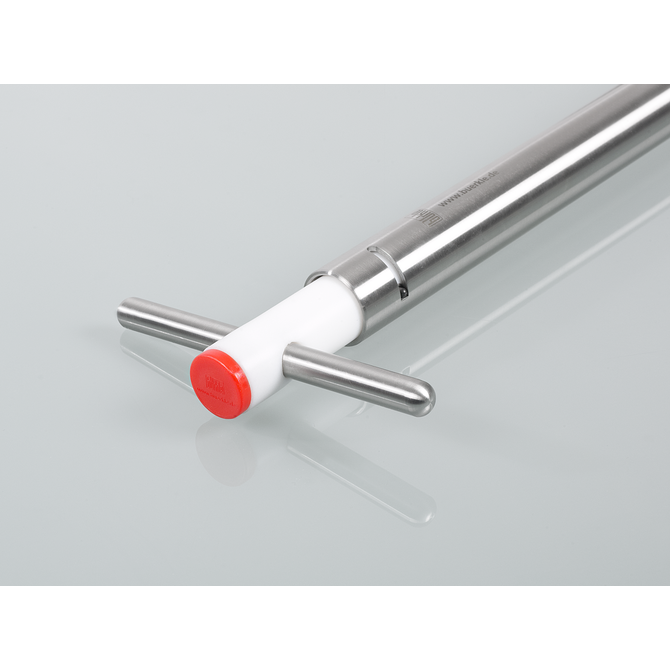

The samplers are marked with coloured caps for easy identification and to prevent mix-ups when using multiple samplers for different bulk solids.

The robust design of the Uno sampler ensures a long service life, even with regular use. The high quality of workmanship ensures reliability and precision with every sample.

Typical application area of the product

The Uno sampler is suitable for precise and targeted sampling of all types of bulk materials and is used wherever it is necessary to take samples from one or more zones or layers in order to obtain a targeted or comprehensive analysis of the composition, quality, impurities or inconsistencies of a material. For example, in the food industry to check the homogeneity and quality of bulk materials such as grain, maize, nuts, powders or granules; in the pharmaceutical industry for quality control of raw materials, intermediate and finished products; in the chemical industry to analyse chemicals, powders to ensure homogeneity of mixture and compliance with specifications; in the construction industry, materials science, research and development to examine bulk materials such as sand, gravel and other materials.
How to use the product

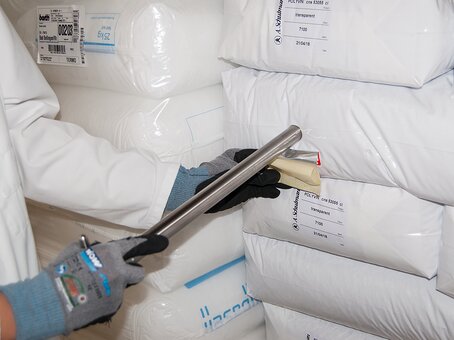

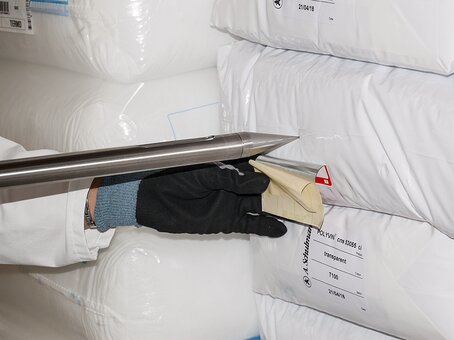

  1. Turn the handle of the zone collector clockwise. The collector is now closed and can be pierced into the powder/granulate.

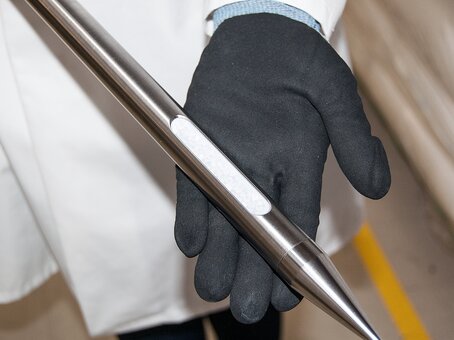

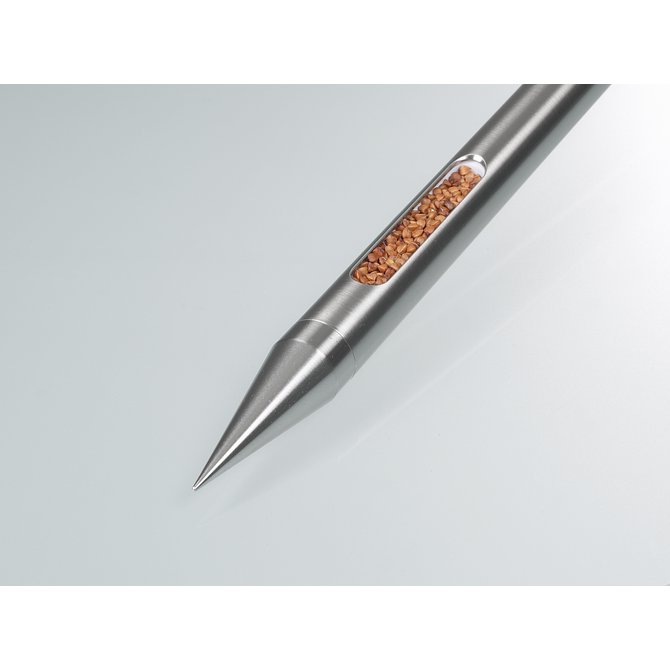

  2. At the desired depth, turn the handle of the zone collector counterclockwise. The collection chamber opens and is filled with sample.
  3. Turn the handle on the collector clockwise. The collector is now closed and can be removed from the powder/granulate.
  4. Open the collector and empty the sample onto an appropriately prepared surface.
zer12_v25_en_ex_vxa.pdf zer12_v25_en_ex_vxa.pdf
5316-1xxx_unosammler_gebrauchsanleitung.pdf 5316-1xxx_unosammler_gebrauchsanleitung.pdf
  • Uno collector target point sampler
  • Caps for color coding

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

General material

PTFE
Polytetrafluoroethylene

Further materials

NBR
Nitrile butadiene rubber

Sample chamber details

Sample volume per chamber:
14 ml
Number of collection openings:
1 St
Sample quantity:
14 ml

Lance dimensions

Pipe Ø:
25 mm
Plunge depth:
430 mm
Total length:
583 mm
Outer Ø:
25 mm

Collecting chamber dimensions

Chamber length:
80 mm
Start of the collecting chamber:
98 mm
Chamber width:
12 mm
To the list of chemical resistance
