Packaging unit

Piece

Detailed information

The aluminium all-layer sampler is much lighter than the stainless steel version, making the zone sampler easier to handle and transport, especially when used in field studies or in situations where weight is an issue.

The zone sampler is easily autoclaved and flamed, minimising the risk of sample contamination.

The sampler is very robust and offers the highest quality workmanship at an attractive price. This makes the aluminium all-layer zone sampler an economical option for budget sensitive projects or for use in less aggressive environments.

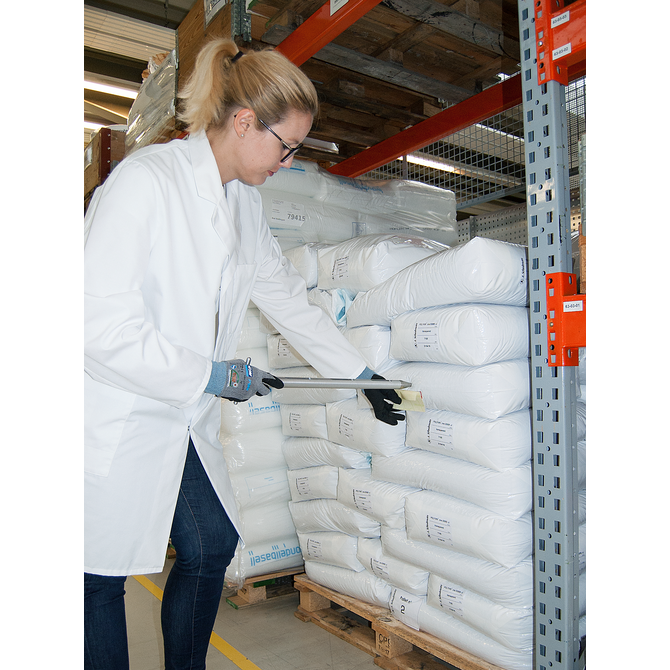

The all-layer sampler with open inner tube is the ideal sampler for taking all-layer or mixed samples from all types of bulk materials, from the finest powders to larger grains.
This zone sampler ensures representative sampling through all layers or zones of the sample material.

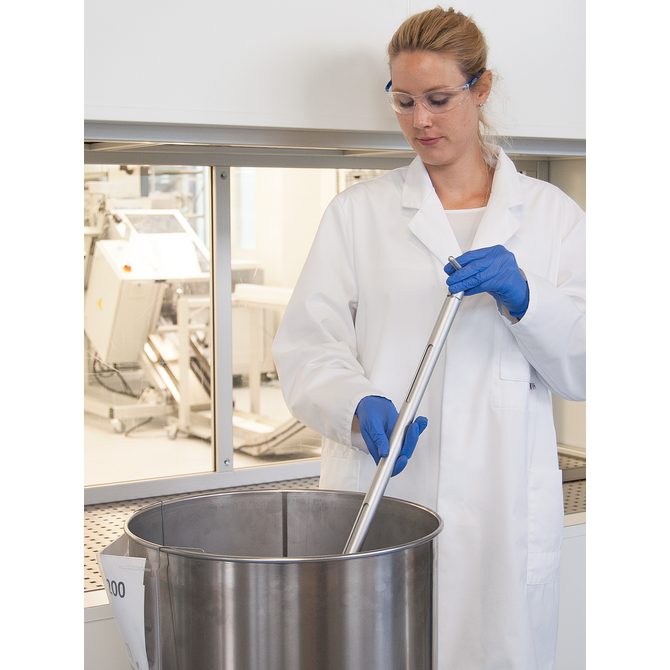

Obtaining a homogeneous and representative all-layer composite sample from heterogeneous material is critical, especially when the composition varies within the bin, silo or pile. The all-layer zone sampler ensures that the sample taken reflects the overall composition of the material, which is essential for analysis and quality control.

The lances can be used both vertically and horizontally, making it a very versatile sampler for different types of containers.

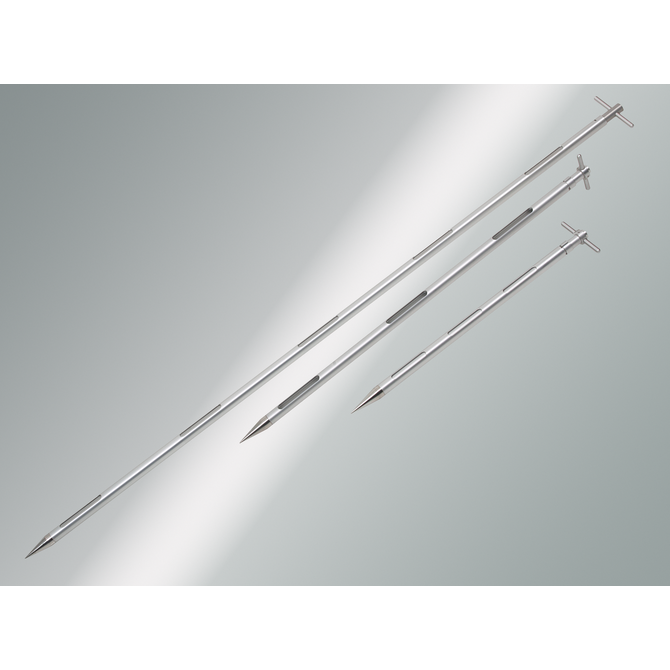

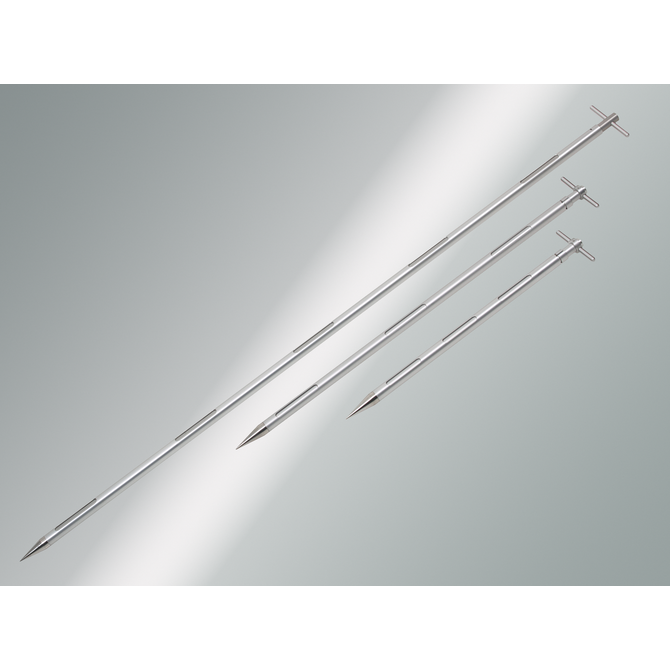

The open inner tube, with no separate chambers, allows sampling across the entire volume of the sampler, providing a generous collection volume for more detailed analysis of bulk materials.

The design with minimal gap between the inner and outer tube reduces the risk of contamination and increases sampling accuracy. The removable tip also facilitates cleaning and effectively prevents cross-contamination between different samples.

Thanks to its robust design, the all-layer sampler promises a long service life, even with regular use. The high quality workmanship ensures reliability and precision with every sample.

Typical application area of the product

The all-layer sampler is widely used in various industries where it is important to take representative samples from different layers or areas of a material.

This is particularly important in quality control and quality management in industry, especially in the food, pharmaceutical, chemical and building materials industries, to check compliance with quality standards. In research and development to analyse the composition, properties or impurities of a material. In raw material extraction and processing to assess the quality and composition of a material.

A representative sample is essential for accurate test results.

How to use the product

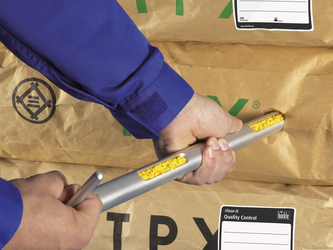

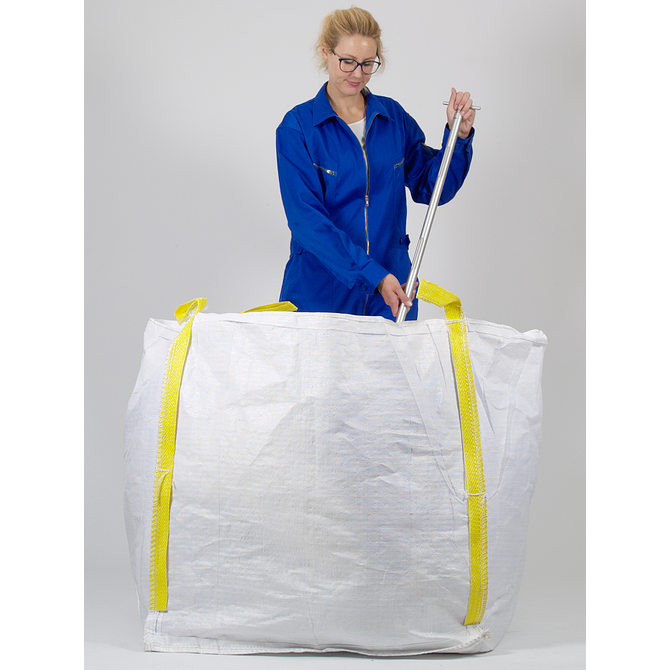

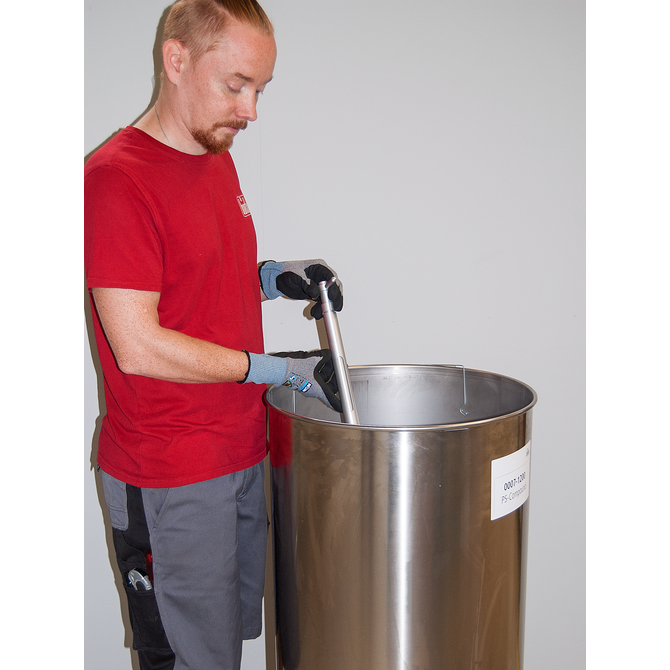

Turn the handle of the all-layer sampler clockwise, it is now closed and can be pierced into the powder/granulate.
At the desired depth, turn the handle of the collector counterclockwise, the collection chambers are opened and filled with sample.
By turning the handle clockwise again, the collector is closed again and can be removed from the powder/granulate.
Turn the all-layer collector upside down and empty the all-layer sample through the open inner tube into a suitable collecting vessel.

zer12_v25_en_ex_vxa.pdf

5317-2xxx_allschichtsammler_aluminium_gebrauchsanleitung.pdf

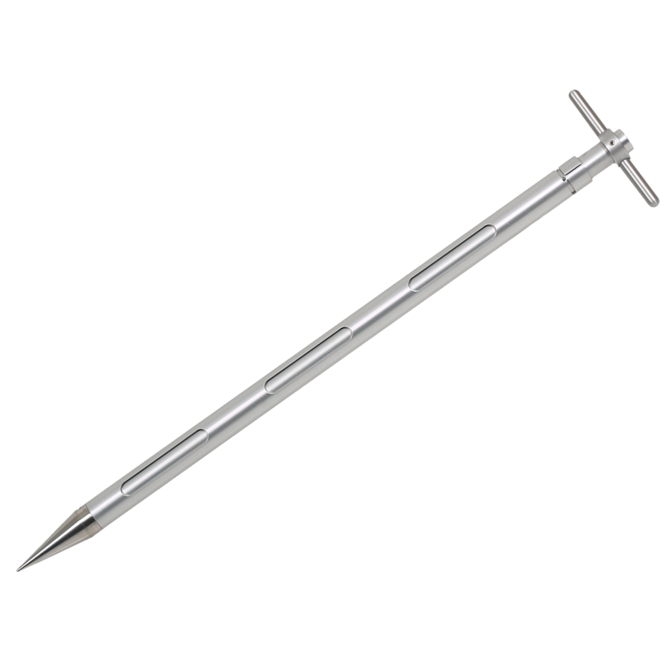

Aluminium all-layer sampler

Specifications

General material

Al
Aluminium

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

Further materials

NBR
Nitrile butadiene rubber

Lance dimensions

Pipe Ø:: 25 mm
Outer Ø:: 25 mm
Plunge depth:: 430 mm
Total length:: 576 mm

Sample chamber details

Number of collection openings:: 3 itms
Sample quantity:: 70 ml

Collecting chamber dimensions

Chamber length:: 80 mm
Start of the collecting chamber:: 102 mm
Chamber width:: 12 mm
Distance between the chambers:: 55.5 mm

To the list of chemical resistance
