Packaging unit

Piece

Please note

Please order the desired inserts as accessories!

Detailed information

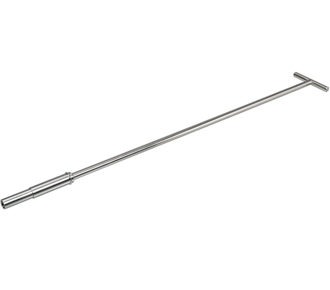

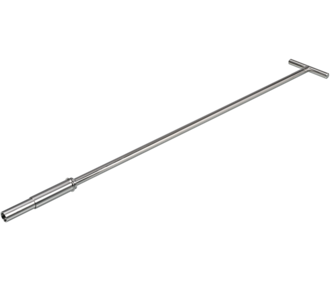

The Novartos Multi 2-compartment double sampler allows a double multi-point sample to be taken from several pre-defined sampling zones. Depending on the length, four, seven or nine sampling chambers are equipped with two sample inserts (accessories) each.

Novartos pharmaceutical samplers can be used to take multiple unit-dose samples from one or more sampling points in a single sampling run.

Thanks to the intelligent design of these pharmaceutical samplers, it is not necessary to pierce the sample material several times for a multiple sample, thus largely avoiding segregation of the sample material. This is a particularly important requirement when taking very small quantities in the pharmaceutical industry.

With the Novartos sampler, a large number of samples can be taken quickly and easily, even from the same location, allowing representative retained samples to be taken.

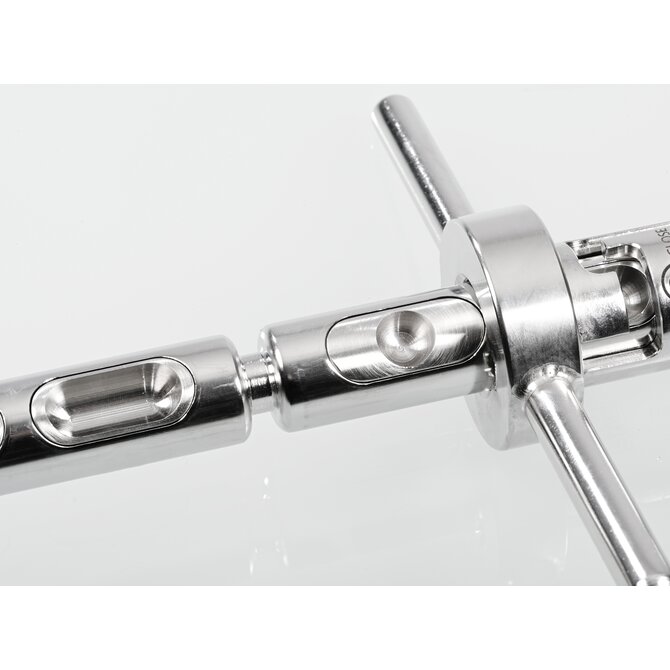

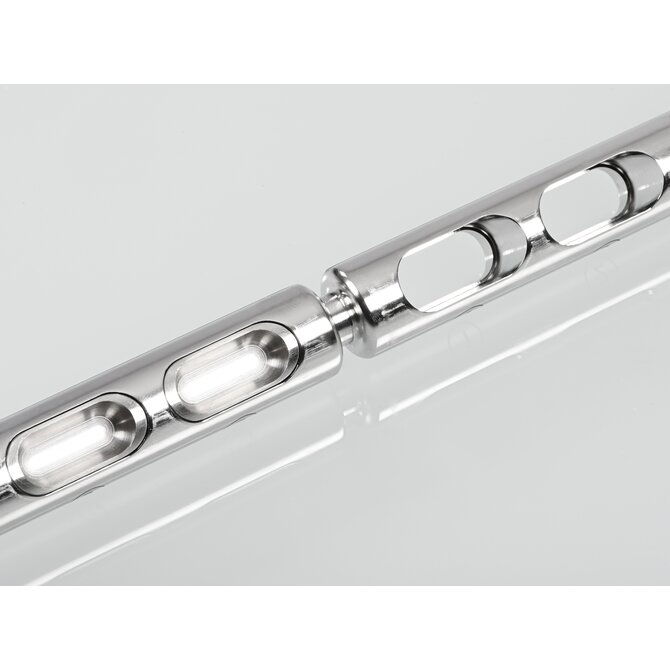

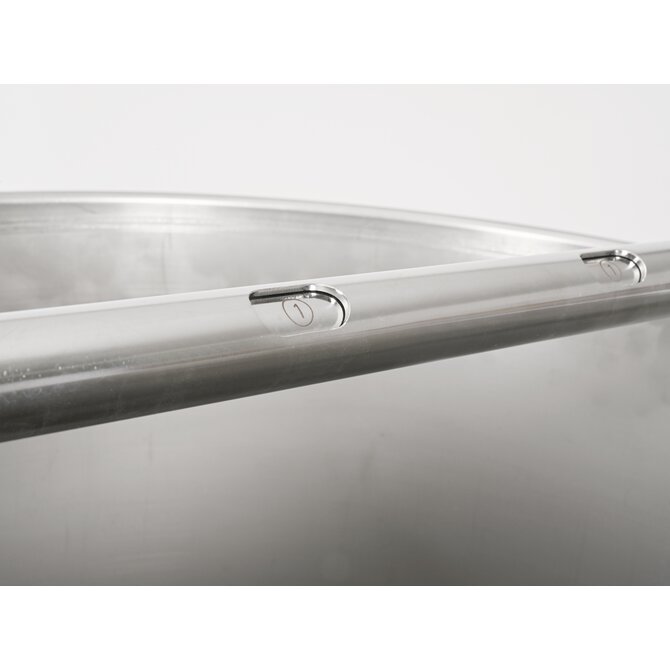

The immersion depth of the sample lance is easy to read off the laser engraved depth scale. The rounded tip prevents scratching of the container. Two additional handles ensure safe insertion, fixation and rotation in the material. The precisely fitting inserts prevent mixing of materials and allow easy disassembly for thorough cleaning.

The electro-polished, grooveless surface of the pharmaceutical sampler and the high quality finish mean that there are no gaps for sample residue to collect in, which is also a key benefit for easy cleaning.

Typical application area of the product

The Novartos pharma sampler is a highly specialised sampler used primarily in the pharmaceutical industry to meet the strict requirements of FDA guidelines for unit dose sampling. However, the application is not limited to the pharmaceutical sector, but can also be used in the chemical industry, food and beverage industry, biotechnology, wherever the smallest quantities of powders need to be sampled in a representative way.
How to use the product

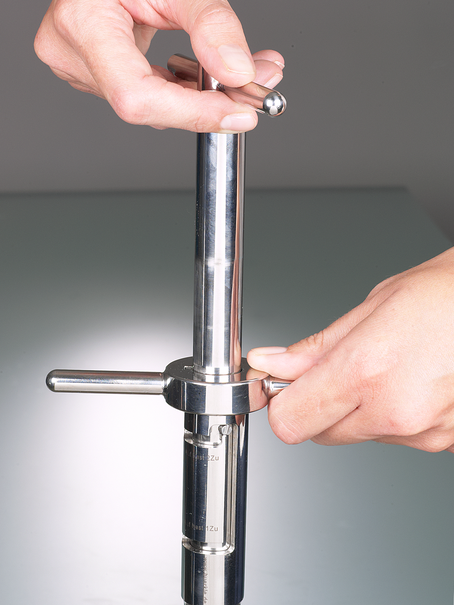

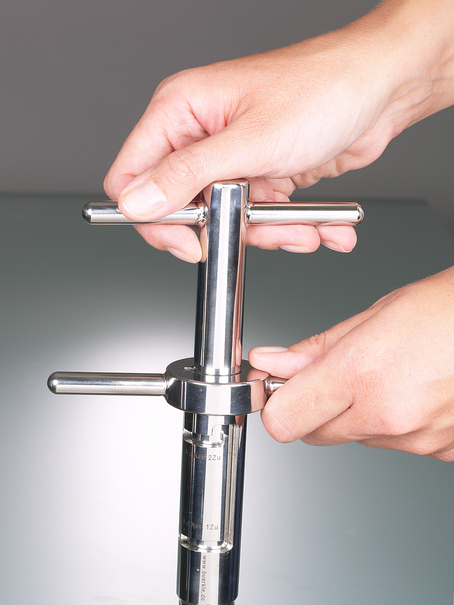

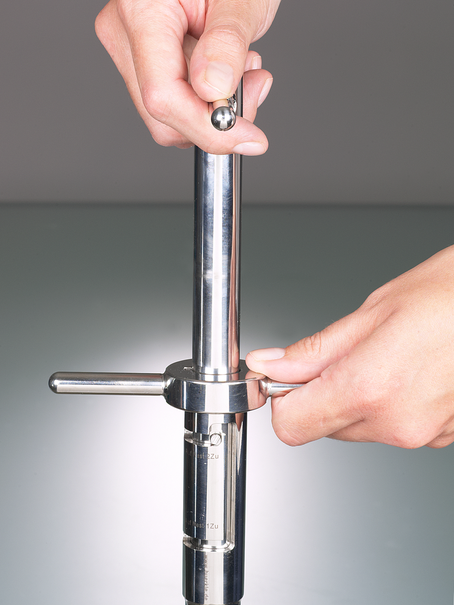

  1. With "1", move the sampler to the "CLOSE" position. The sampler is closed and can be inserted into the powder/granulate.

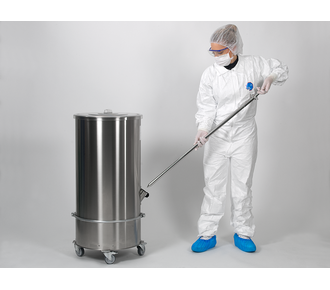

  2. Insert the sampler into the powder/granulate to the desired depth (the scale indicates the depth in cm).
  3. Move the sampler to the "OPEN" position at "1". The sampler is now open and is filled with sample.
  4. Move the sampler at "1" to the "CLOSE" position. The sampler is closed and the powder/granulate can be removed.

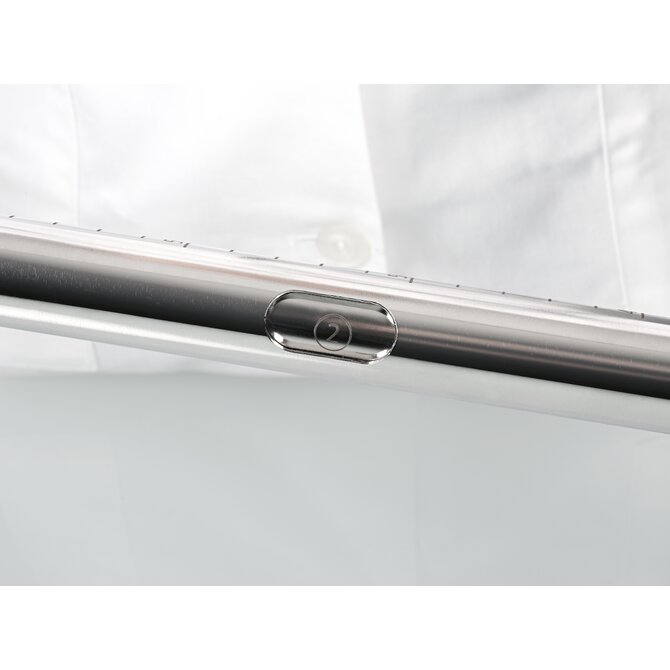

  5. If a second sample is to be taken, move the sampler to the "CLOSE" position at "2".
  6. Move the sampler at "2" to the "OPEN" position. The sampler is open and is filled with the second sample.
  7. Move the sampler at "2" to the "CLOSE" position. The sampler is closed and the powder/granulate can be removed.

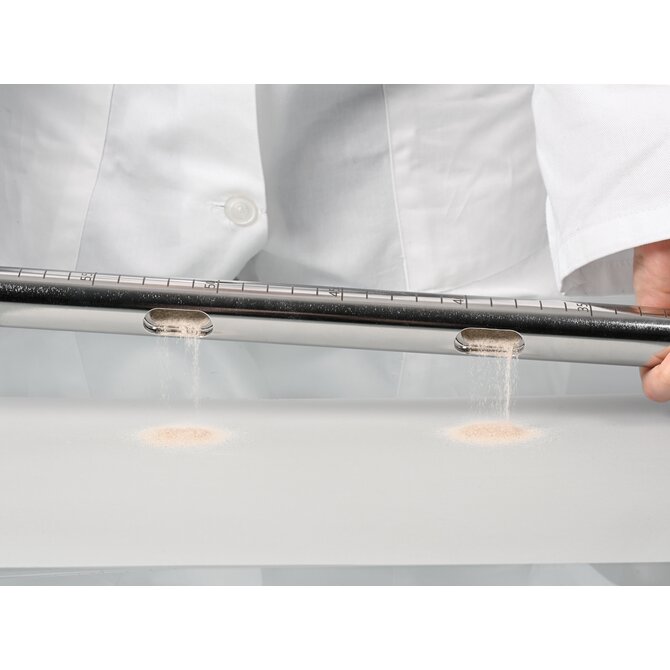

  8. Open the sampler and empty the sample onto an appropriately prepared surface or into a suitable collecting container.
zer12_v25_en_ex_vxa.pdf zer12_v25_en_ex_vxa.pdf
5358-xx0x_novartos_multi_zweifach_probenzug_gebrauchsanleitung.pdf 5358-xx0x_novartos_multi_zweifach_probenzug_gebrauchsanleitung.pdf
  • Sampling lance Novartos Multi 2-compartment sampler

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

General material

1.4571
Stainless steel 1.4571, AISI 316Ti

Sample chamber details

Number of collection openings:
4 itms
Maximum coverage:
8 itms

Lance dimensions

Pipe Ø:
25 mm
Plunge depth:
600 mm
Total length:
800 mm

Collecting chamber dimensions

Chamber length:
30 mm
Start of the collecting chamber:
55 mm
Chamber width:
13 mm
Distance between the chambers:
118.5 mm
To the list of chemical resistance

You need

The following accessories are required to use the product

You need

Novartos Multi sample inserts

Novartos Multi sample inserts are accurately fitting, easily interchangeable sample inserts for the Novartos Multi pharmaceutical sampler. Different volumes can be selected and combined. The blank insert (0.0 ml) can be used to prevent sampling at a specific point.
Necessary accessories

Complementary products

Novartos tip (not rounded)

Novartos tip (not rounded)

The non-rounded tip for Novartos can be replaced on the sampling lance. The very pointed and stable tip can be used to pierce directly into bags or other containers.
Transport case, large

Transport case, large

Similar products

Novartos Multi pharmaceutical zone sampler 3-compartment sampler Novartos Multi pharmaceutical zone sampler 3-compartment sampler

Novartos Multi pharmaceutical zone sampler 3-compartment sampler

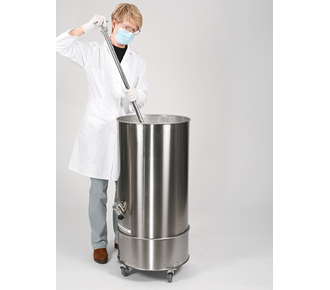

The Novartos Multi 3-compartment sampler takes a triple multipoint sample from several pre-defined sampling zones. Depending on the length, four, seven or nine collection chambers are equipped with three sample inserts (accessories) each for the triple sampler.
Novartos Uno pharmaceutical zone sampler 2-compartment sampler Novartos Uno pharmaceutical zone sampler 2-compartment sampler

Novartos Uno pharmaceutical zone sampler 2-compartment sampler

With the Novartos Uno 2-compartment sampler, a double target point sample can be taken from a predefined sampling area. A collection chamber is equipped with two sample inserts (accessories) for the double sampler.
Pharmaceutical zone collector Novartos Uno 3-sample train Pharmaceutical zone collector Novartos Uno 3-sample train

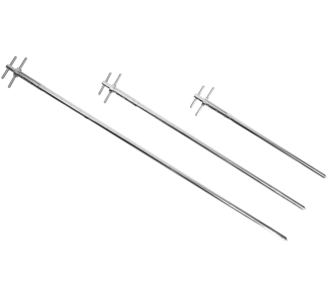

Pharmaceutical zone collector Novartos Uno 3-sample train
