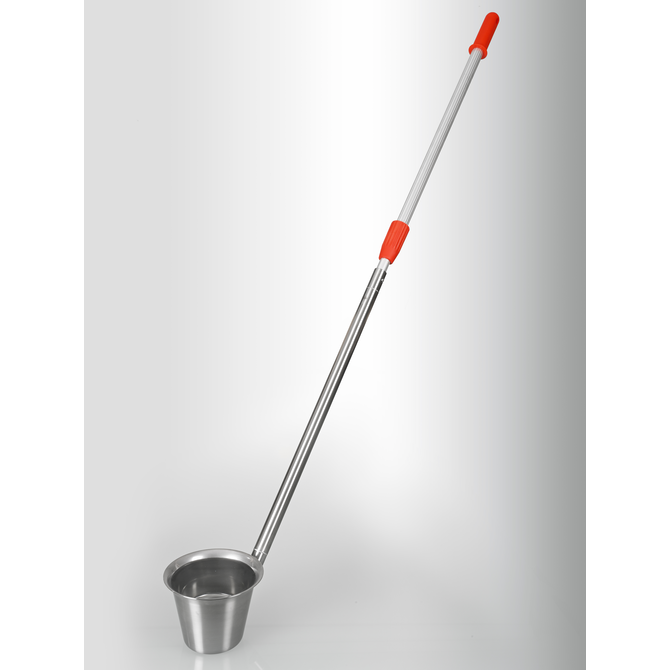

Sampling dipper made of stainless steel AISI 304 (1.4301) with extended, completely closed handle.

The sample beaker has no openings or indentations to an immersion depth of approx. 500 mm. The closed design of the rod makes the scoop ideal for sampling water from wells, sludge, wastewater or liquid manure.

In combination with the telescopic rod, a range of up to 6 metres is possible.

Thanks to the scraper edge on the rim of the beaker, samples can also be taken of viscous media, powders and granulates.

The beaker is steam-sterilisable and completely flame-resistant, which makes it easy to sterilise at the point of use.

TeleScoop is a versatile sampling system with exchangeable tools for a wide range of applications. The tools (angular beaker, pendulum beaker, bottle holder, stainless steel beaker and dip net) are attached to the telescopic rod by a practical snap-in joint.

Sampling depths down to 6 m can be reached with the adjustable telescopic aluminium rod.

Typical application area of the product

Ideal for sampling from baths, tanks, shafts, open water courses etc.
zer12_v25_en_ex_vxa.pdf zer12_v25_en_ex_vxa.pdf
5354-2010_becher_edelstahl_verlaengert_gebrauchsanleitung.pdf 5354-2010_becher_edelstahl_verlaengert_gebrauchsanleitung.pdf
  • Stainless steel beaker, extended

Specifications

General material

1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304

Scoop dimensions

Immersion depth max.:
500 mm
Total length:
718 mm
Outer Ø:
152 mm

Contents of scoop container

Contents:
1000 ml

Other dimensions

Collection container height:
112 mm
Handle/handle length:
550 mm
To the list of chemical resistance

You need

The following accessories are required to use the product

You need

Telescopic rod
