Packaging unit

Piece

Detailed information

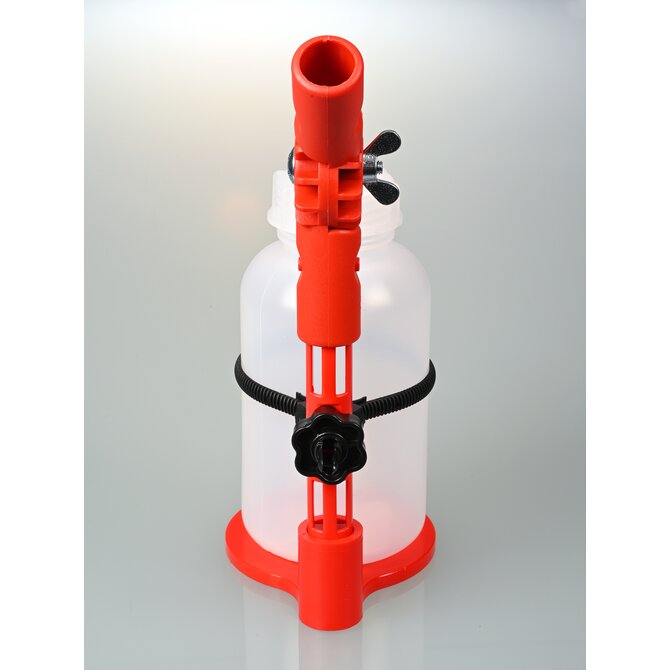

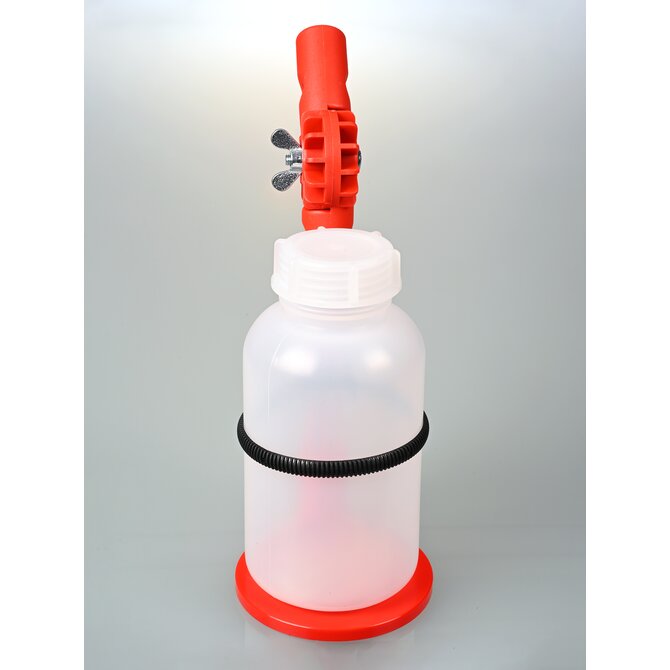

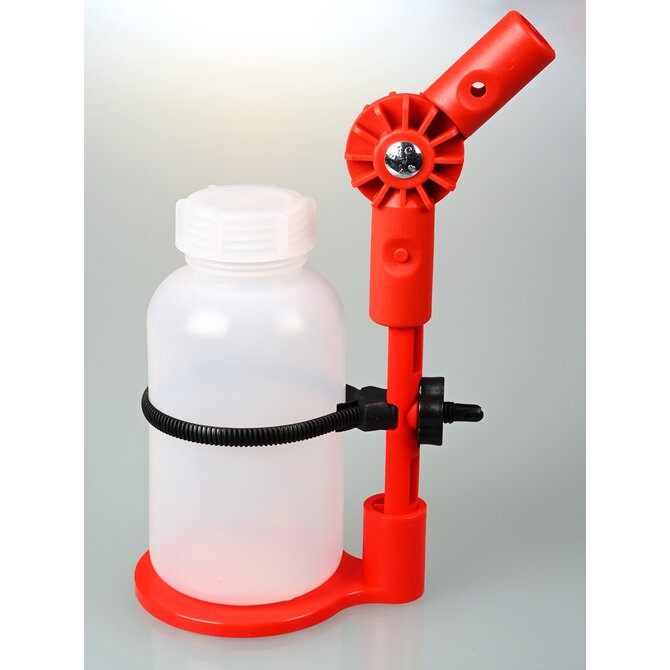

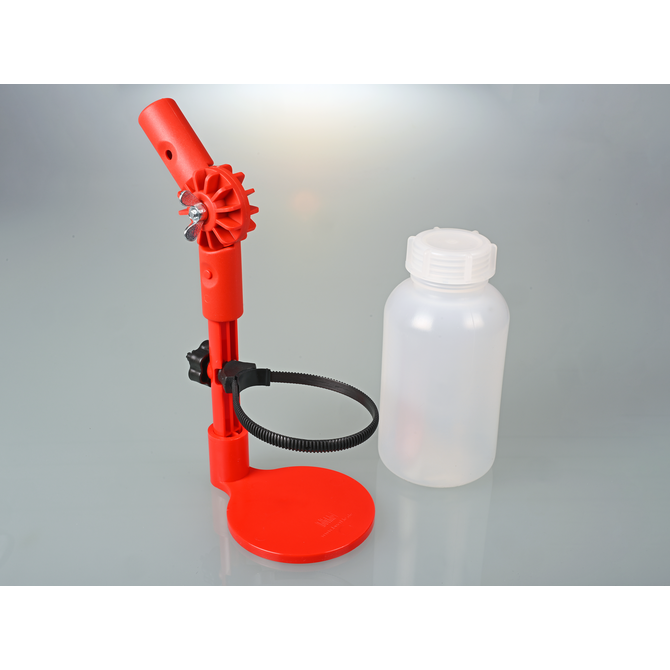

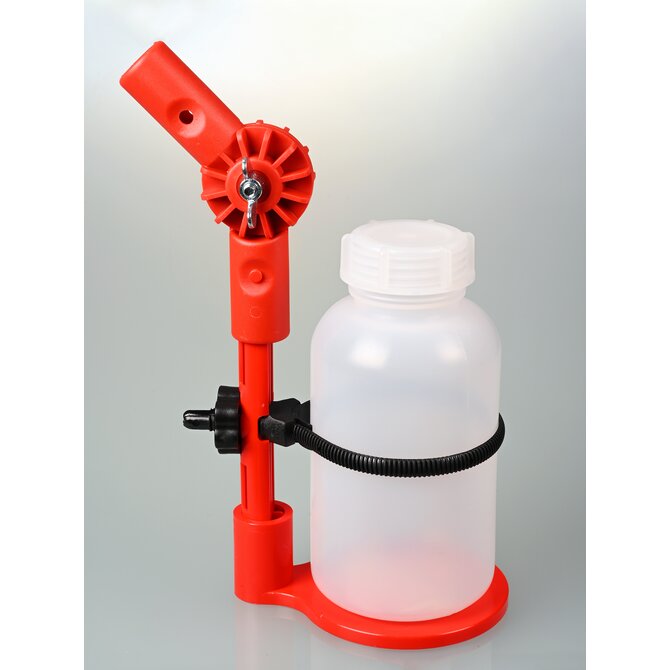

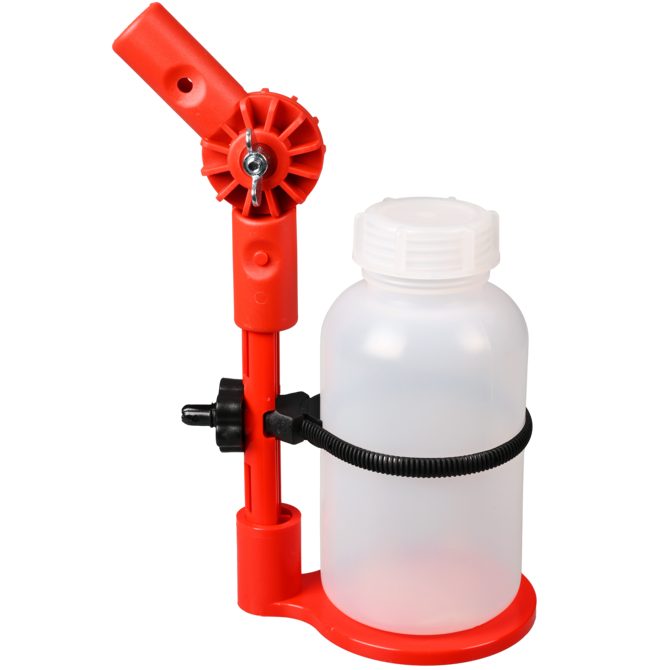

Holds all bottles up to 88 mm Ø. Plastic, glass or metal bottles can be securely filled in this way. Angle steplessly adjustable up to 90°.

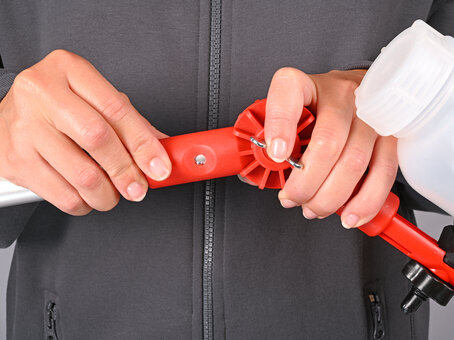

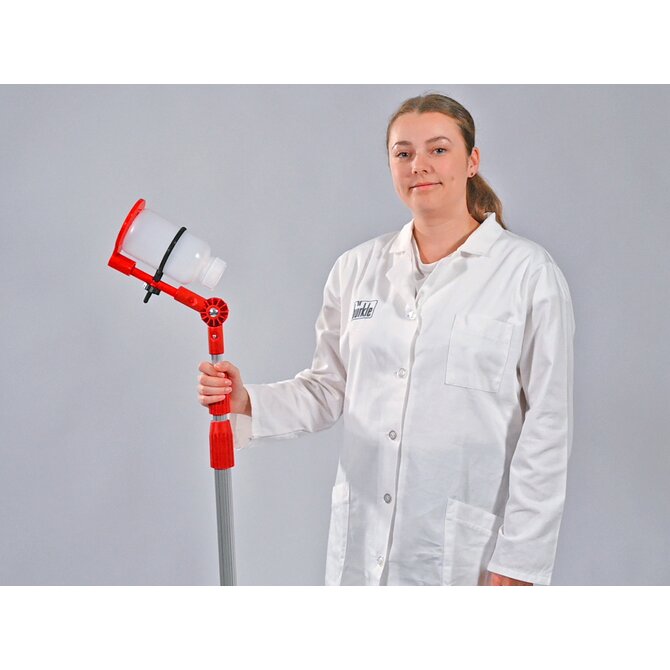

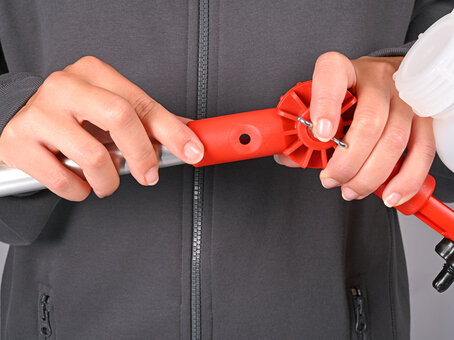

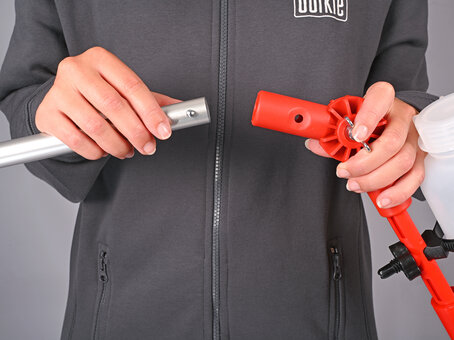

TeleScoop is a versatile sampling system with exchangeable tools for a wide range of applications. The tools (angular beaker, pendulum beaker, bottle holder, stainless steel beaker and dip net) are attached to the telescopic rod by a practical snap-in joint.

Sampling depths down to 6 m can be reached with the adjustable telescopic aluminium rod.

Typical application area of the product

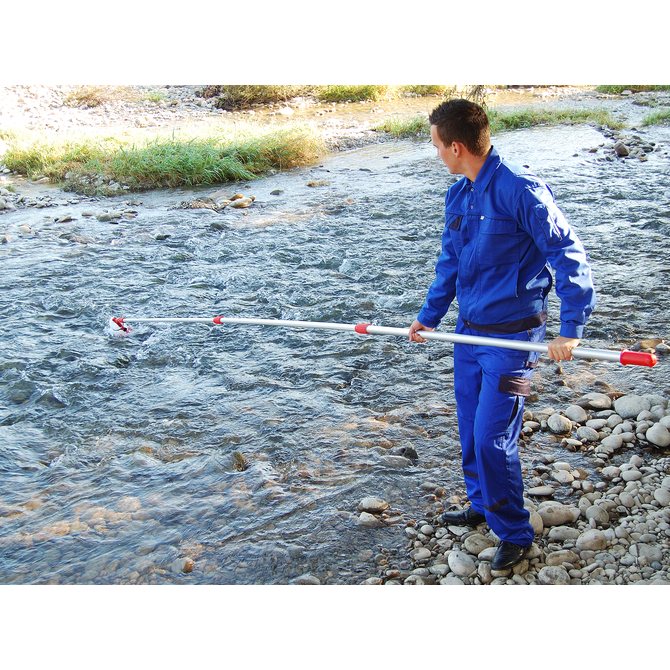

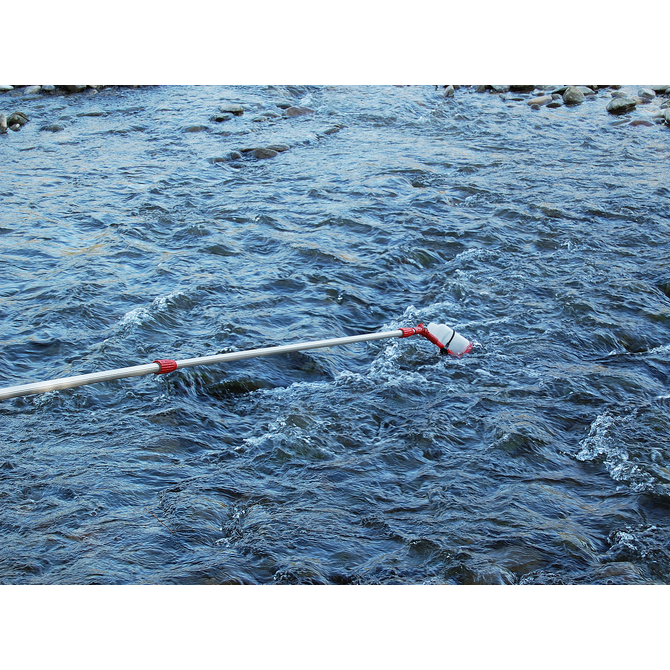

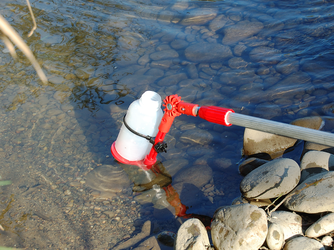

Ideal for sampling from baths, tanks, shafts, open water courses etc.
5354-4100_flaschenhalter_gebrauchsanleitung.pdf 5354-4100_flaschenhalter_gebrauchsanleitung.pdf
  • Bottle holder

Specifications

General material

PP
Polypropylene

General material

PA
Polyamide

Scoop dimensions

Immersion depth max.:
206 mm
Outer Ø:
103 mm

Contents of scoop container

Contents:
750 ml

Other dimensions

Collection container height:
190 mm

Scoop

Sample material:
free-flowing,viscous/light viscosity
Special properties scoops:
Adjustable/flexible tilt angle,Integrated sample container
To the list of chemical resistance

You need

The following accessories are required to use the product

You need

Telescopic rod

Different tools can be attached to the telescopic rod (snap-in joint). The individual rods have been provided with an end stop. This means that one rod cannot accidentally slip out of another rod.

The telescopic rods cannot be rotated radially, which means even better handling!

Telescopic rod 5355-0280, extremely short model – yet extendable up to 280 cm. Fits into every car boot!
