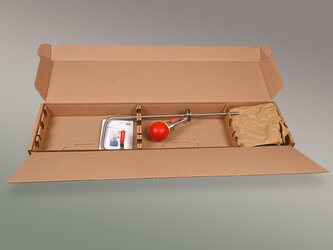

Packaging unit

Piece

Please note

Caution! When handling flammable, highly flammable liquids, the explosion protection guidelines must be observed. All parts must be earthed, use anti-static set!

Detailed information

The solvent pump for tinplate canisters with pull-out spout puts an end to the risky decanting of dangerous substances into another container. The included thread adapter fits to the standard pull-out spouts - immediate safety!

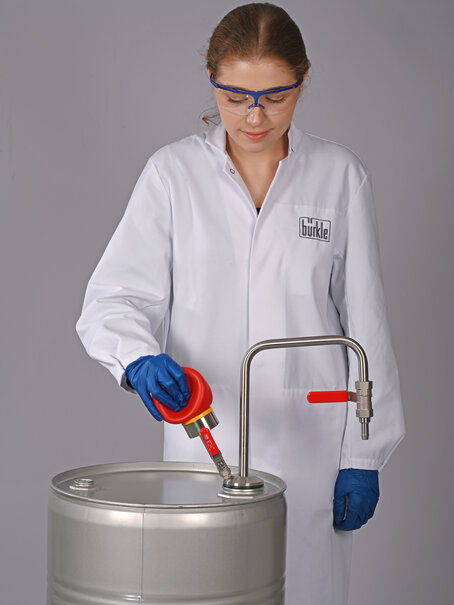

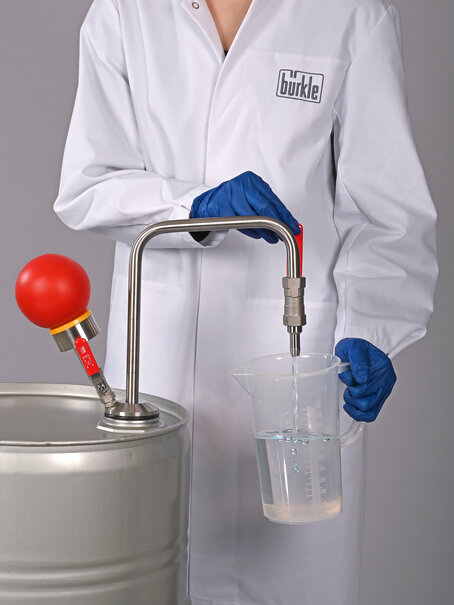

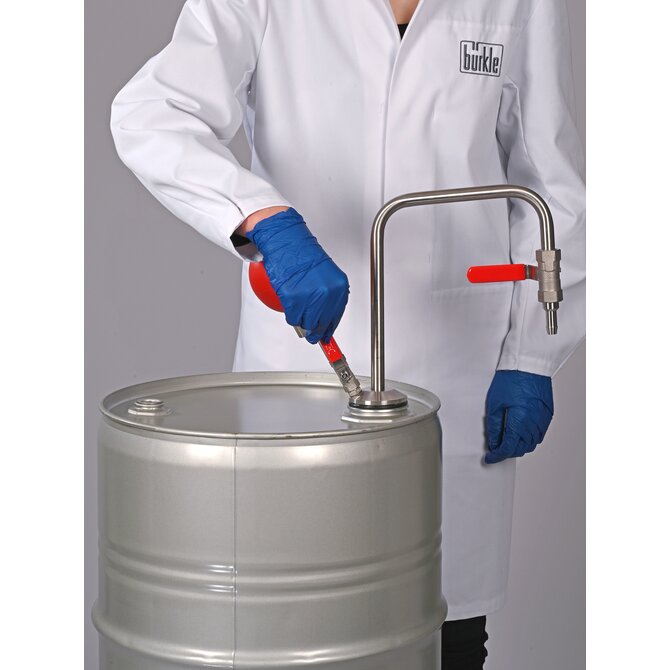

Hand-operated solvent pump for contaminationfree removal of organic solvents and flavouring agents. The hand pump works according to the overpressure principle. An excess pressure is built up in the tank with the pump ball, forcing the liquid out of the container.

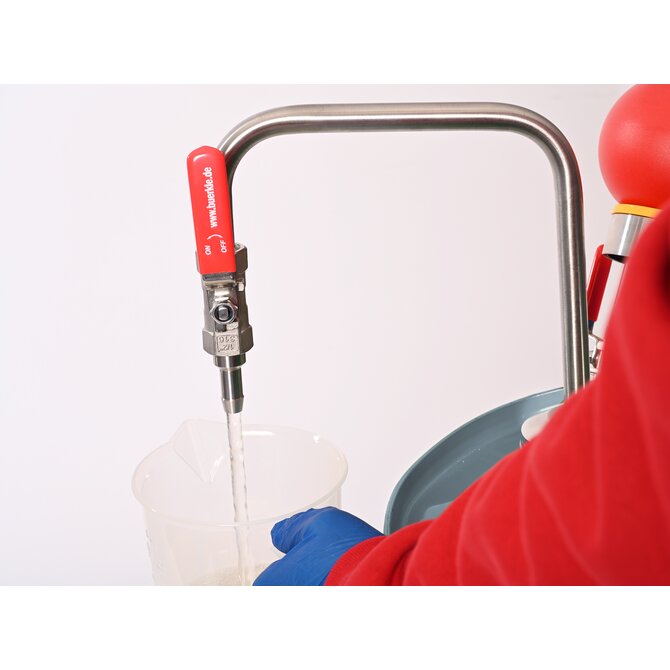

Pouring flammable liquids

All medium-contacting parts are made of stainless steel AISI 304 (1.4301) and PTFE. The Bürkle anti-static set can be used to ground the pump for dispensing flammable liquids so that no electrostatic charge forms.

Gastight version

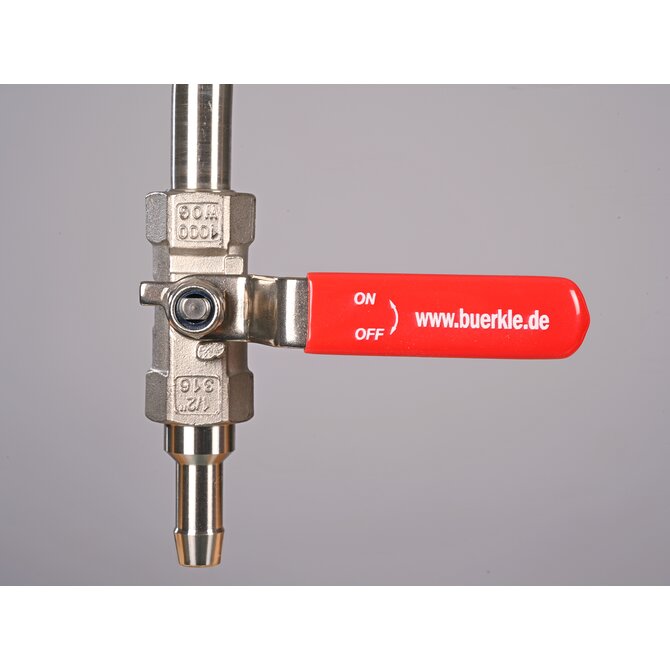

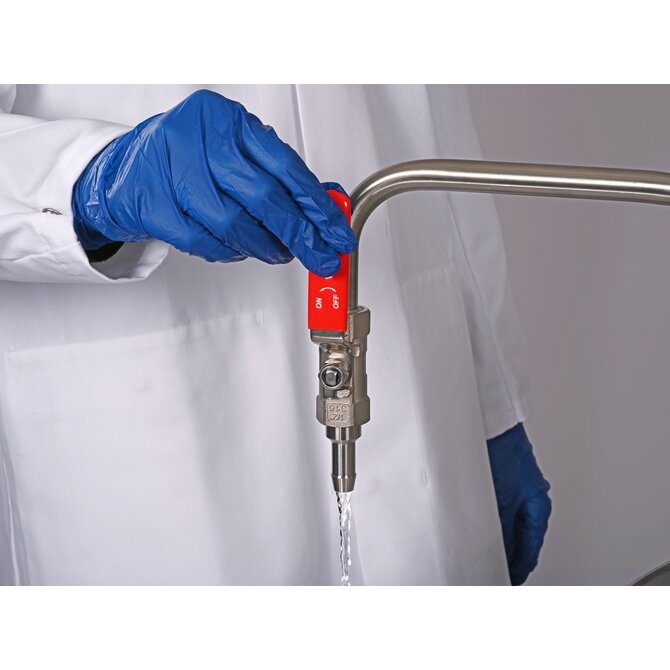

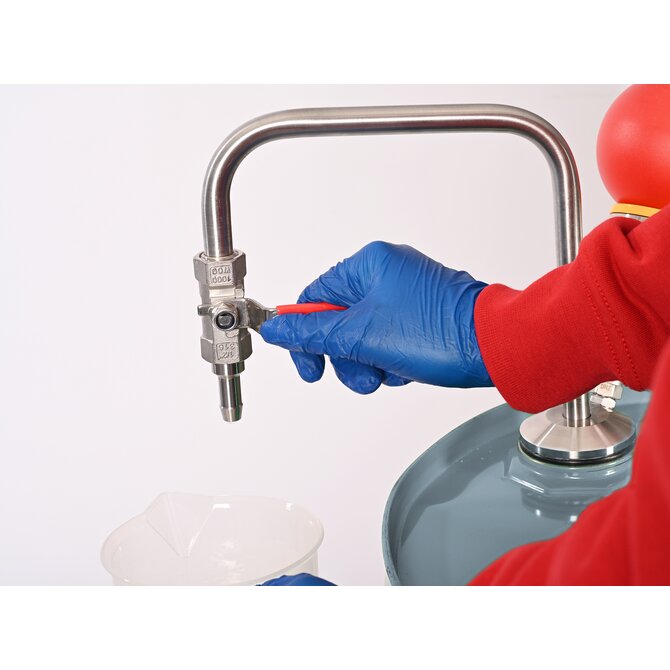

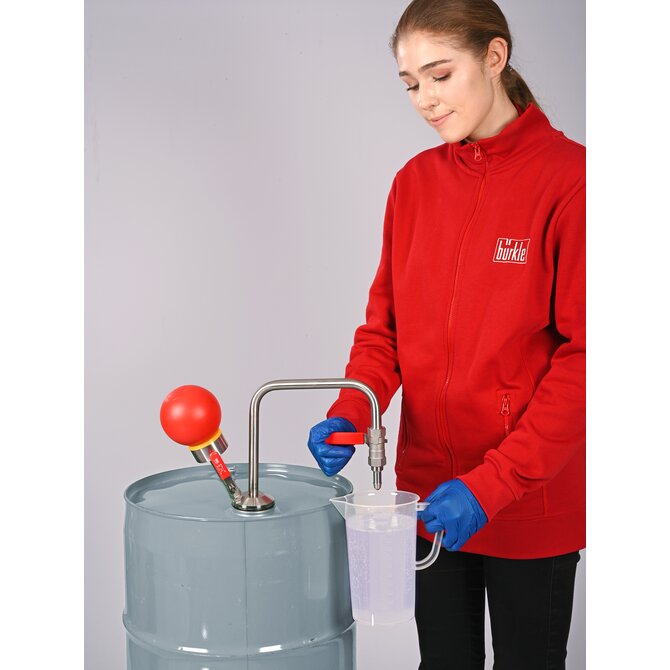

The pump can be completely closed off with the two ball valves so that no dangerous vapours can escape after dispensing.

Suitable for different containers

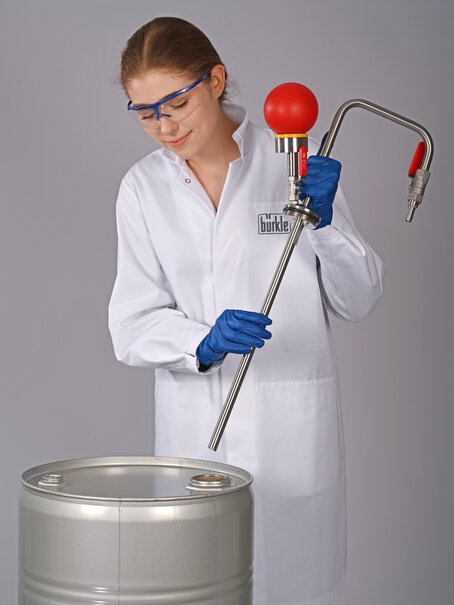

The hand pump is suitable for containers up to 60 litres.

Typical application area of the product

Hand-operated solvent pump for contaminationfree removal of organic solvents and flavouring agents.
5603-xxxx_zer12_v05_en_ex.pdf 5603-xxxx_zer12_v05_en_ex.pdf
5603-x000_loesemittelpumpe_handbetrieb_gebrauchsanleitung.pdf 5603-x000_loesemittelpumpe_handbetrieb_gebrauchsanleitung.pdf
  • Hand pump with fixed discharge elbow and stopcock

Specifications

General material

1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304

Further materials

PTFE
Polytetrafluoroethylene

Connection

Connection type:
Thread
Thread:
G 2 inch
Version:
External thread
Connection Ø:
35 mm

Throughput

Conveying capacity:
10 l/min

Limit values

Viscosity up to:
500 mPa*s

Ø

Pipe Ø:
15 mm
Immersion tube Ø:
15 mm

Pump outlet

Length of discharge tube:
185 mm
Outlet type:
Discharge tube

Delivery tube

Immersion depth max.:
60 cm
To the list of chemical resistance

You need

The following accessories are required to use the product

You need

Anti-static set

Necessary accessories
