Packaging unit

Piece

Please note

Caution! When handling flammable, highly flammable liquids, the explosion protection guidelines must be observed. All parts must be earthed, use anti-static set!

Detailed information

Barrel pump for solvents with rigid discharge tube.

Pouring flammable liquids

All medium-contacting parts are made of stainless steel AISI 304 (1.4301) and PTFE. The Bürkle anti-static set can be used to ground the pump for dispensing flammable liquids so that no electrostatic charge forms.

Protection against hazardous vapours

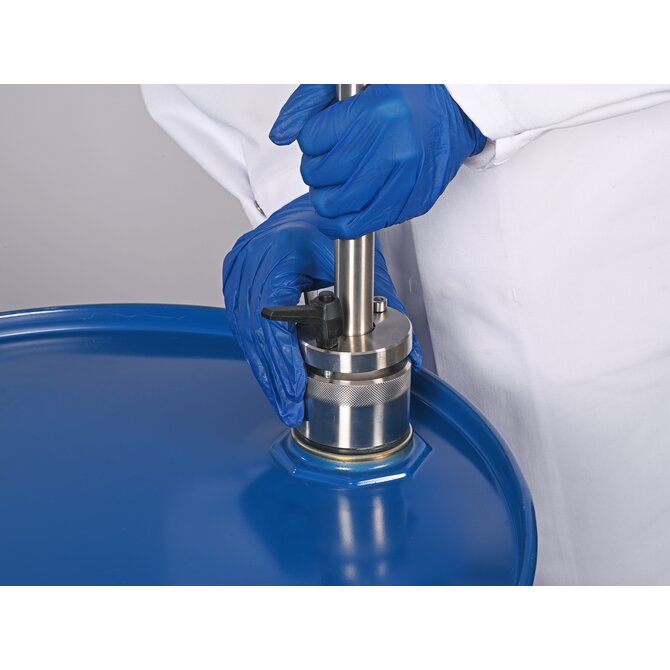

Due to the barrel screw joint and the stopcock, the container and the pump can be hermetically sealed. So that no dangerous vapours can escape after dispensing. This protects both health and the environment.

Sturdy and practical design

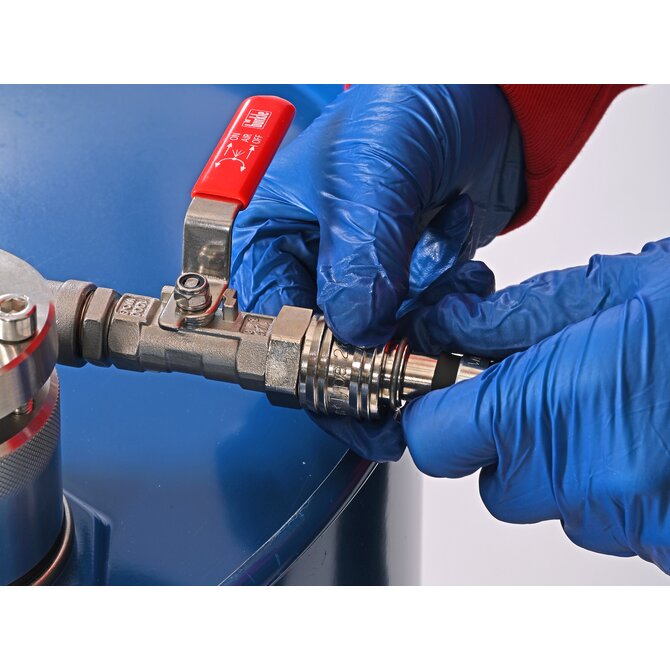

The solid, durable industrial version of the solvent pump ensures a long service life. The pump works according to the overpressure principle. An excess pressure is built up in the tank with the foot actuator, forcing the liquid out of the container. Easy foot operation of the pump with foot actuator leaves both hands free for dispensing. The air hose can be quickly and easily connected and disconnected with the practical clip connection.

Typical application area of the product

Solvent pump foot operated for filling off high purity liquids such as solvents.

5603-xxxx_zer12_v05_en_ex.pdf

5603-1100_loesemittelpumpe_fussbetrieb_auslaufbogen_gebrauchsanleitung.pdf

Solvent pump foot operated - discharge tube

Specifications

General material

1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304

Further materials

PTFE
Polytetrafluoroethylene

Connection

Connection type:: Thread
Thread:: G 2 inch
Version:: External thread

Throughput

Conveying capacity:: 20 l/min

Limit values

Viscosity up to:: 500 mPa*s

Ø

Pipe Ø:: 21.3 mm
Immersion tube Ø:: 21.3 mm

Pump outlet

Length of discharge tube:: 300 mm
Outlet type:: Discharge tube

Delivery tube

Immersion depth max.:: 95 cm

To the list of chemical resistance

You need

Name: Solvent pump foot operated - discharge tube
SKU: 5603-1100

The following accessories are required to use the product

You need

Anti-static set

Necessary accessories

Complementary products

Air filters for solvent pump

Filter for the air hose of the foot-operated solvent pump, protects the filling medium from dust particles which may be introduced by the foot-operated air pump. This makes particularly pure filling possible.
