View in the flip catalogue
To all specifications

Packaging unit

Piece

Detailed information

The stalk sampler is a sampler specially designed for hay, silage, straw, herbs, shrubs or other dry, stalky plant material where other samplers quickly become tangled. The special geometry of the auger tip cuts effectively and quickly into various stalky materials.

The hay and silage sampling auger takes samples from a silo or bale quickly, cleanly and easily. Sampling with mechanical assistance from a drill or powerful cordless screwdriver allows easy removal of the sample with little manual effort.
The sampling auger can be used vertically (top sampling) or horizontally (side sampling).

The robust and durable tubular screw is made entirely of stainless steel 1.4404/1.4034 or aluminium/stainless steel 1.4034.
The handy ejector helps to empty the sample from the auger.

Typical application area of the product

In agriculture, regular sampling is required to monitor the quality of animal feed and crop storage, and to control the quality of stalks used as fuel.
How to use the product
  1. Attach the sample drill to the drilling machine.
  2. Place the drill bit on the sample material and allow it to rotate slowly.
  3. Carefully accelerate the sample drill and drill into the sample material to the desired depth.
  4. Pull the drill out of the sample.
  5. Remove the collecting tube from the drill
  6. Empty the sample into a suitable collecting container using the ejector.
zer12_v25_en_ex_vxa.pdf zer12_v25_en_ex_vxa.pdf
  • Sample auger for stalk material
  • Ejector for sample auger

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

General material

1.4034, AISI 420
Stainless steel 1.4034, AISI 420

Further materials

1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304

Diameter

Outer Ø:
25 mm
Inside Ø:
21 mm

Dimensions

Length:
268 mm

Drill

Drilling depth:
200 mm
To the list of chemical resistance

Similar products

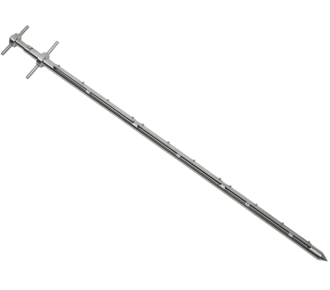

Sample lance scraper Sample lance scraper

Sample lance scraper

The gripper sampler is particularly suitable for sampling non-free-flowing, agglomerating powders and granules. Variable zones within the inner tube can be individually adjusted using movable PTFE separators.

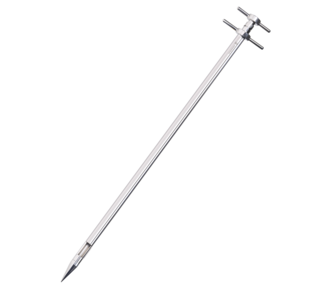

Scratcher powder sampler for cohesive substances Scratcher powder sampler for cohesive substances
