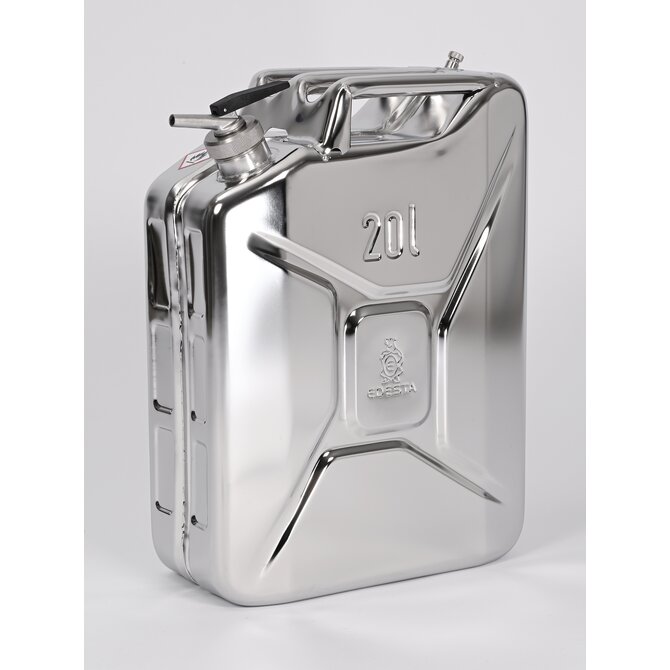

Safety jerrycans stainless steel, with fine dosage spout and ventilation screw
- 0.8 mm sides
- Handles made of solid stainless steel
- Closure thread 1 1/2"
- Seals made of PTFE
Packaging unit
Piece
Detailed information
Safety canister made of stainless steel AISI 304 (1.4301).
In canisters with excess pressure valve, pressure balance takes place from about 0.3 bar.

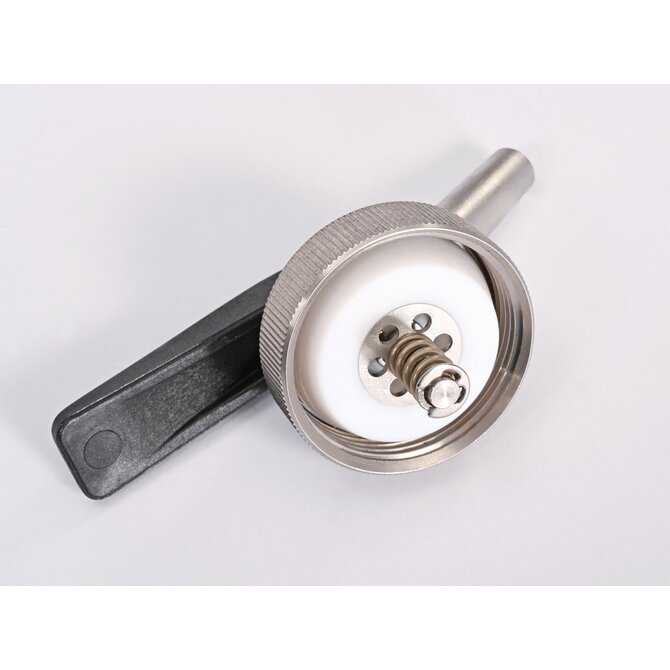

Safety canister with self-closing fine dosage spout 20 l: with separate ventilation.

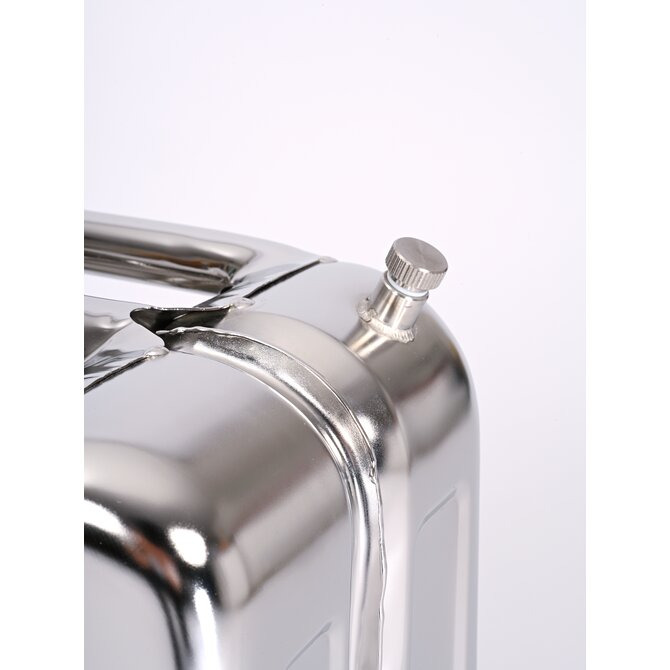

Canisters with a venting screw enable manual air supply when used or manual pressure balance during storage.
Safety canister for transport and storage made of stainless steel.

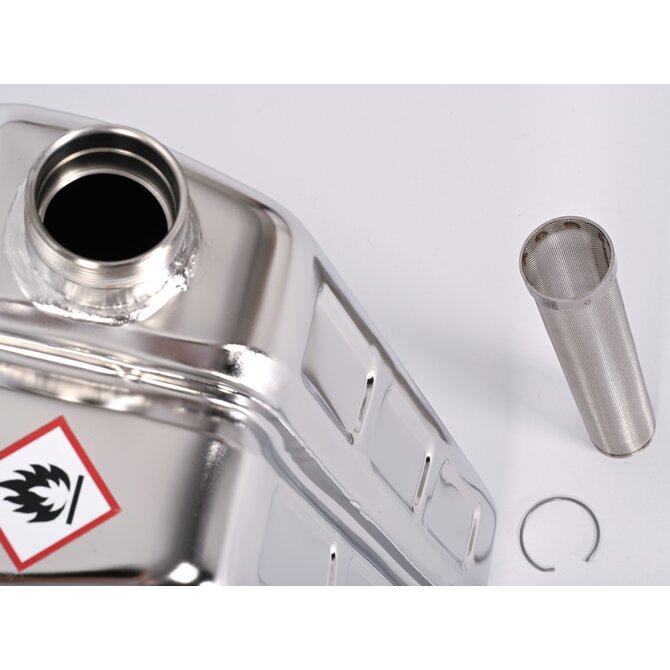

Protection from exploding through flame protection and excess pressure valve. The containers have a high degree of chemical resistance and they save space.
Typical application area of the product
Safety canister for transport and storage.
- Safety jerrycans stainless steel, with fine dosage spout and ventilation screw
Specifications
General material
1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304
Further materials
PTFE
Polytetrafluoroethylene
Closure
- Closure type:
- Screw cap with tap
Volume
- Contents:
- 20 l
Dimensions
- Length:
- 345 mm
- Width:
- 175 mm
- Height:
- 470 mm
Properties
- Safety container equipment:
- attributes.value.with excess pressure valve,with venting screw,with fill level indicator
Gewinde
- Thread:
- G 1 1/2 Zoll
- Version:
- External thread
Safety jerrycans stainless steel, with screw cap
Safety canister made of stainless steel AISI 316 Ti (1.4571) for 5 l and 10 l canisters and AISI 304 (1.4301) for 20 l canisters.
In canisters with excess pressure valve, pressure balance takes place from about 0.3 bar.
Safety jerrycans stainless steel with UN approval
Safety canister made of stainless steel AISI 316 Ti (1.4571).
Safety jerrycans stainless steel, with fine dosage spout
Safety canister made of stainless steel AISI 316 Ti (1.4571).
In canisters with excess pressure valve, pressure balance takes place from about 0.3 bar.
Safety canister with self-closing fine dosage spout 20 l: with separate ventilation.
Safety cans stainless steel
For safe metering and handling of smaller amounts of flammable liquids.
Protection from exploding through flame protection and excess pressure valve, the containers have a high degree of chemical resistance.
Can with removable flame protection in the filling connector and excess pressure valve in the self-closing fine dosage spout (pressure balance from about 0.3 bar).
Safety storage container stainless steel, with tab
Safety containers for transport and storage with thickness of sides of 0.8 mm (10 l), 1.2 mm (25 l).
The 25 l container can be stacked.
In safety containers with excess pressure valve, pressure balance takes place from about 0.3 bar.
For containers with self-closing tap, constant ventilation can be set via a plastic lever on the screw cap.
Safety storage container stainless steel with UN approval
Safety containers for transport and storage with thickness of sides of 1.2 mm (25 l).
The 25 l container can be stacked.
Safety storage container stainless steel with pressure-relief valve
Safety containers for transport and storage with thickness of sides of 1.5 mm.
In safety containers with excess pressure valve, pressure balance takes place from about 0.3 bar.
Safety storage container stainless steel, with tab and level indicator
Safety containers for transport and storage with thickness of sides of 0.8 mm (10 l).
In safety containers with excess pressure valve, pressure balance takes place from about 0.3 bar.
For containers with self-closing tap, constant ventilation can be set via a plastic lever on the screw cap.
The contents display made of perfluoroalkoxy copolymers (PFA) enables a visual contents check when filling and emptying.
