Detailed information

Safety containers for transport and storage with thickness of sides of 1.5 mm.

In safety containers with excess pressure valve, pressure balance takes place from about 0.3 bar.

Safety containers for transport and storage made of high-quality stainless steel AISI 304 (1.4301) / AISI 316 Ti (1.4571).

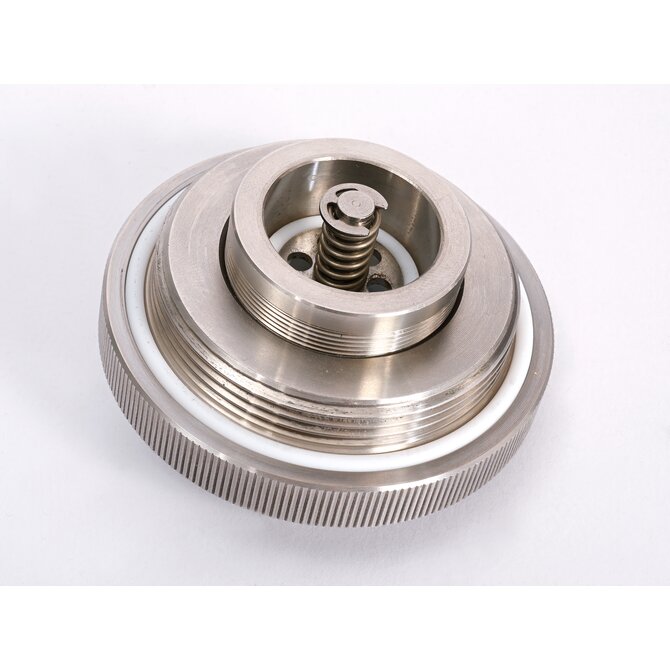

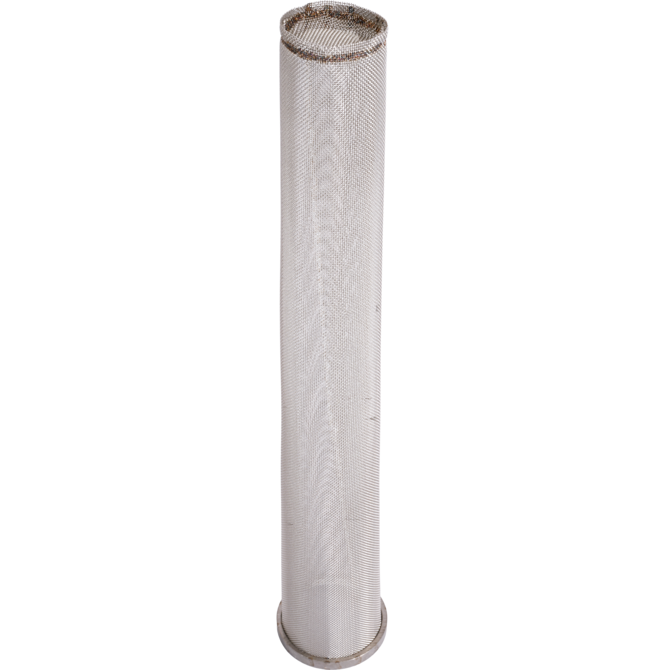

Protection from exploding through flame protection and excess pressure valve, seals made of PTFE, the containers have a high degree of chemical resistance.

Typical application area of the product

Safety containers for transport and storage
  • Safety storage container stainless steel with pressure-relief valve

Specifications

General material

1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304

Further materials

PTFE
Polytetrafluoroethylene

Closure

Closure type:
Screw cap

Volume

Contents:
50 l

Diameter

Outer Ø:
365 mm

Dimensions

Height:
600 mm

Properties

Safety container equipment:
attributes.value.with excess pressure valve

Gewinde

Thread:
G 1 1/2 Zoll
Version:
External thread
To the list of chemical resistance
Stainless steel thread adapter internal G 1 1/2"- internal G 2" Stainless steel thread adapter internal G 1 1/2"- internal G 2"

Stainless steel thread adapter internal G 1 1/2"- internal G 2"

The thread adapter compensates for different thread shapes, allowing a pump, drain cock or other connection with a G 2" thread (Whitworth pipe thread) to be screwed onto a container with a G 1 1/2" thread.
Safety jerrycans stainless steel Safety jerrycans stainless steel

Safety jerrycans stainless steel

Safety canister for transport and storage made of stainless steel.

Protection from exploding through flame protection and excess pressure valve. The containers have a high degree of chemical resistance and they save space.
Safety cans stainless steel Safety cans stainless steel

Safety cans stainless steel

For safe metering and handling of smaller amounts of flammable liquids.

Protection from exploding through flame protection and excess pressure valve, the containers have a high degree of chemical resistance.

Can with removable flame protection in the filling connector and excess pressure valve in the self-closing fine dosage spout (pressure balance from about 0.3 bar).
