To all specifications

Packaging unit

Piece

Detailed information

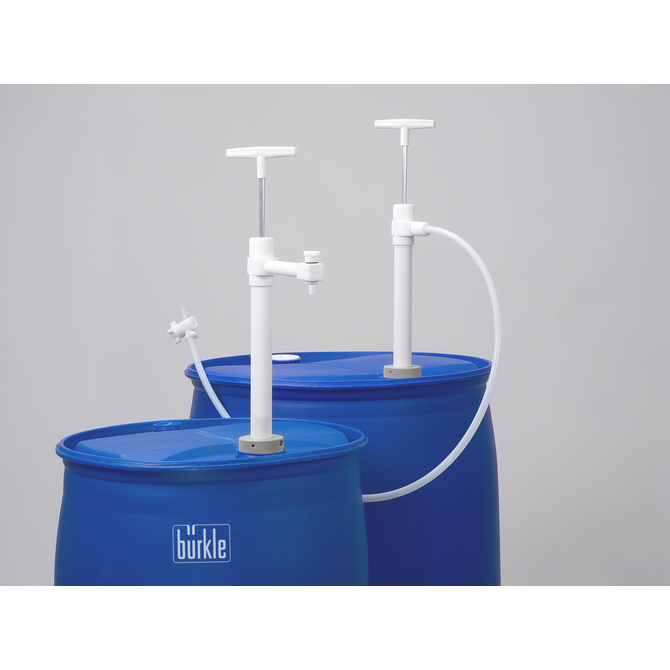

Barrel pump with rigid discharge tube with stopcock made of PTFE.

Due to the high chemical resistance of the wetted materials PTFE and FEP, this drum pump can also be used to fill liquids that attack conventional materials such as PP or PVC (with the exception of elemental fluorine).

The drum pump is also suitable for filling high-purity liquids.

The stopcock prevents hazardous vapours from escaping and liquid from dripping after filling.

Typical application area of the product

The Ultraclean drum pump is suitable for filling acids and alkalis. It is also suitable for filling high-purity liquids.
  • PTFE barrel pump Ultrapure - discharge tube

Specifications

General material

PTFE
Polytetrafluoroethylene

Further materials

FEP
Fluorinated ethylene propylene

Delivery tube

Immersion depth max.:
40 cm

Throughput

Conveying capacity:
180 ml/stroke

Ø

Immersion tube Ø:
32 mm

Colouring

Colour:
white

Connection

Connection type:
Barrel screw joint
For openings from:
32 mm

Limit values

Viscosity up to:
500 mPa*s

Pump outlet

Outlet type:
Discharge tube
Length of discharge tube:
170 mm
Outer outlet Ø:
12 mm
To the list of chemical resistance

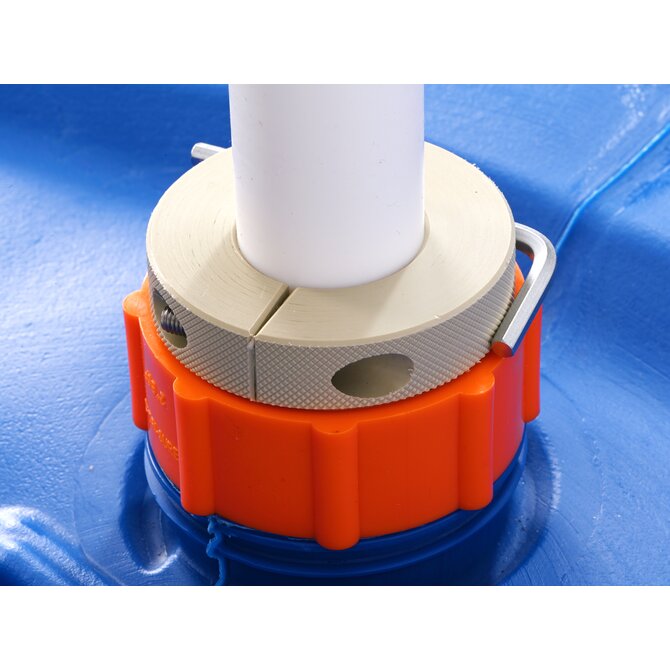

PP barrel screw joint

PP barrel screw joint

Barrel screw joint made of PP for secure connection in the barrel in three different thread models. For drawing off liquids that are not flammable.

The container connectors make decanting even easier and safer with their more secure connection to barrels. The connectors secure the pump in the barrel, enable a vertical position change and allow the required air exchange.
Universal thread adapter Universal thread adapter

Universal thread adapter

Universal thread adapter for nearly all drums and other containers with opening of 48–75 mm in diameter, regardless of the respective thread. The thread adapter can be mounted quickly and easily with clamping screws and can be used for different container openings.

With G2" connector thread for Bürkle drum screw connections and pumps with immersion tube diameter up to 32 mm.
Drum holder Drum holder

Drum holder

The height-adjustable support surface of the drum holder allows the filling container to be placed directly under the outlet of the drum pump. This eliminates the risk of liquid splashing from a great height during filling, for example when the container is on the floor.
PTFE barrel pump Ultrapure - discharge hose PTFE barrel pump Ultrapure - discharge hose

PTFE barrel pump Ultrapure - discharge hose

Barrel pump with flexible discharge hose made of PTFE, length 1.2 m (65 cm for 5606-0401) and stopcock made of PVDF.
