Detailed information

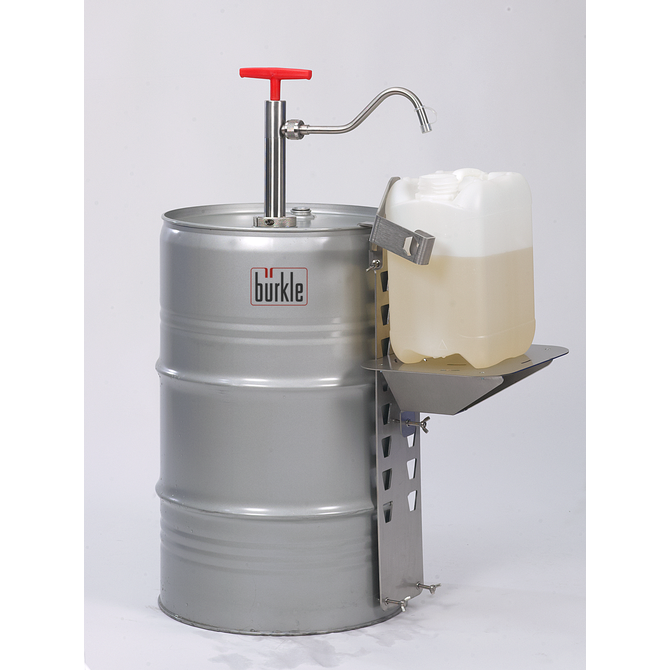

The height-adjustable support surface of the drum support allows the filling containers to be placed directly under the outlet of the drum pump. This eliminates the risk of spillage when filling from a height, such as when the drum is on the floor. In addition, the operator has both hands free during filling and can easily remove larger quantities. A scale and container can also be placed on the support surface to accurately measure the liquid to be filled.

The holder can be used for Bürkle pumps with discharge elbow or discharge hose. Discharge hoses can easily be inserted into the hinged holder. Suitable for all plastic and stainless steel drums from 60 litres to 220 litres with a minimum rim height of 10 mm.

Typical application area of the product

The drum holder is a practical accessory for transferring liquids from drums to smaller containers.

Drum holder

Specifications

General material

1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304

Dimensions

Length:: 250 mm
Width:: 277 mm
Height:: 666 mm

Barrel holder

Filling container height max.:: 470 mm
Storage area length:: 240 mm
Shelf width:: 240 mm
Load capacity:: 10 kg

To the list of chemical resistance

Anti-static set

When decanting flammable liquids without the machines and containers involved in the process being sufficiently earthed, electrostatic build-up can occur, which for many substances can result in fire or an explosion.

Bürkle’s Anti-static set ensures easy and reliable earthing.

The Anti-static set consists of three colour-coded connecting copper cables with clamps in a handy plastic case.
