Packaging unit

Piece

Please note

Pay attention to the chemical resistance of the materials! See also List of chemical resistance

Detailed information

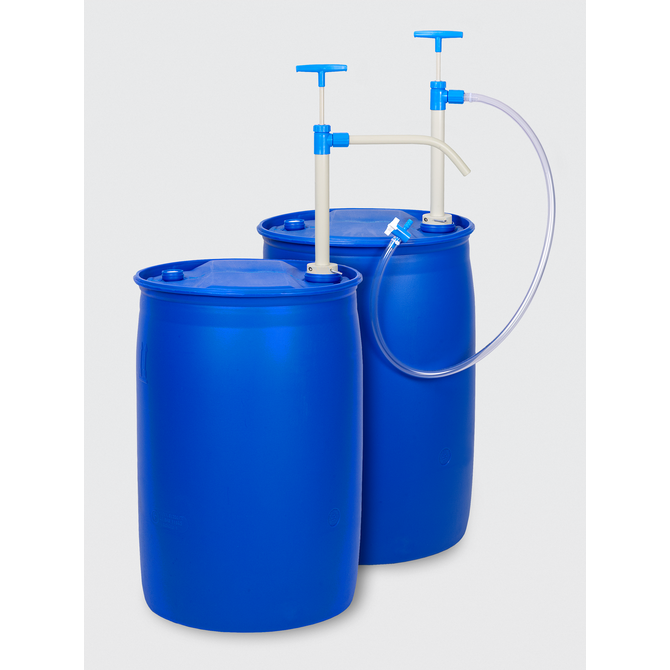

PP barrel pump with rigid discharge tube.

Barrel pumps made of polypropylene allow a fast transfer of liquids from barrels, canisters and tanks.

The low-mounted non-return valve of the barrel pump and the immersion depth that can be steplessly adjusted using the barrel screw joints ensure good removal of residual liquid. The barrel screw joint fastens the barrel's pump securely to the barrel. Barrel screw joints and thread adapters for commercially available containers are available as optional accessories.

Typical application area of the product

The good chemical resistance of PP allows acids, alkalis and aggressive detergents to be transferred.


5600-xxxx_zer12_v02_en_ex.pdf 5600-xxxx_zer12_v02_en_ex.pdf
zer03_v05_en_ex_70308.pdf zer03_v05_en_ex_70308.pdf
5600-xxx1_fasspumpe_pp_auslaufbogen_gebrauchsanleitung.pdf 5600-xxx1_fasspumpe_pp_auslaufbogen_gebrauchsanleitung.pdf
  • PP barrel pump with discharge tube

Specifications

General material

PP
Polypropylene

Further materials

PTFE
Polytetrafluoroethylene

Further materials

PE-HD
High-density polyethylene (HDPE)

Pump outlet

Outer outlet Ø:
20 mm
Length of discharge tube:
290 mm
Outlet type:
Discharge tube

Connection

For openings from:
32 mm
Connection type:
Barrel screw joint

Throughput

Max. delivery rate:
12 l/min
Conveying capacity:
200 ml/stroke

Limit values

Viscosity up to:
500 mPa·s

Ø

Immersion tube Ø:
32 mm

Colouring

Colour:
grey/blue

Delivery tube

Immersion depth max.:
50 cm
To the list of chemical resistance
