Detailed information

PowderProof® with vertical lance is the ideal solution for sampling from large bulk containers with direct top access. The sampling lance allows efficient and accurate sampling directly from open containers such as drums, barrels or big bags.

The PowderProof® sampling lance is a field-proven, mobile yet electrically powered sampling solution specifically for powders and granules. Large sample quantities can be obtained in a very short time. The robust drive unit combined with an interchangeable lance and spiral conveyor allows flexible sampling from a variety of bulk materials, whether from drums, big bags or sacks.

With the PowderProof® sample collector, both target point and all-layer samples can be taken quickly and conveniently. This enables comprehensive quality control right from incoming goods inspection.

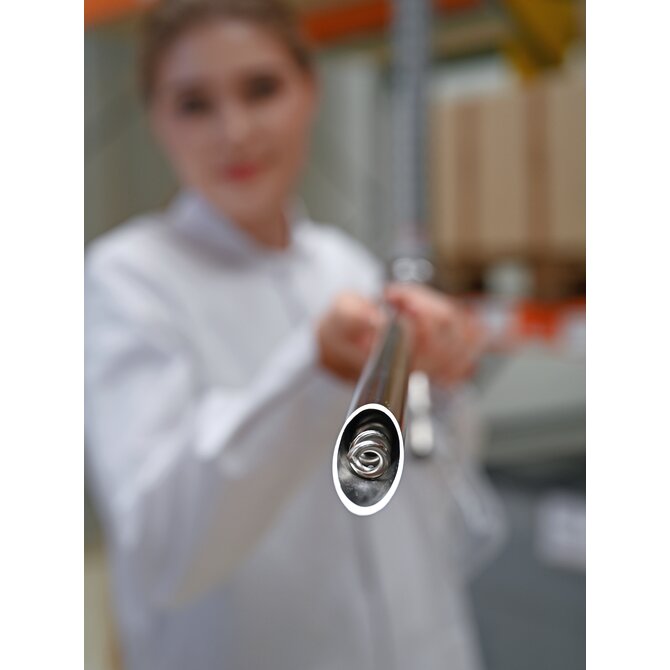

The lance tip is specially designed for good gliding and easy penetration into the material, even through narrow container openings.
Sample material is delivered through the lance directly into the sample container, preventing contamination of the sample. A comprehensive range of accessories enhances ease of use and safety during sampling.

Typical application area of the product

The PowderProof® electric sampler is ideal for the food, pharmaceutical, chemical and agricultural industries where contamination-free sampling of bulk materials in large quantities is essential. From incoming quality control to research and development, PowderProof® provides a reliable solution for sampling free-flowing powders and granules up to 4mm in diameter.

How to use the product

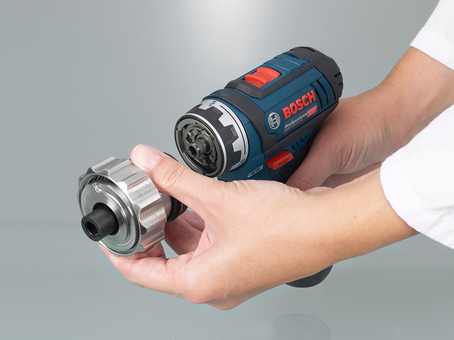

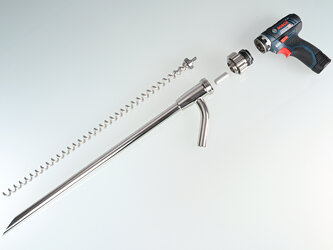

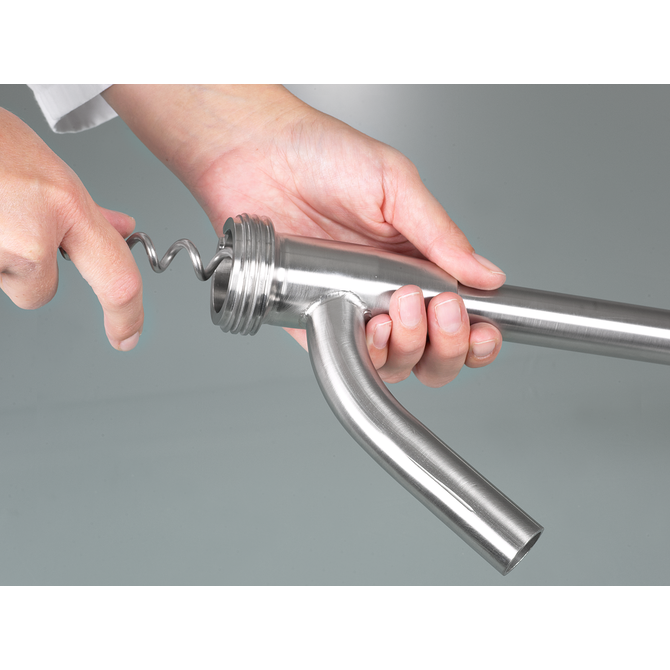

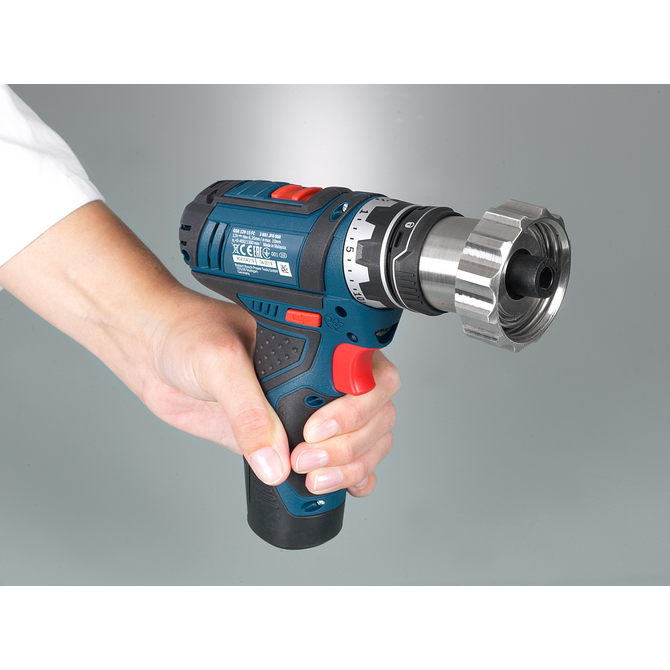

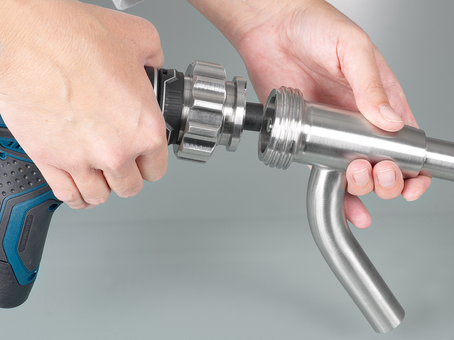

Insert the lance adapter into the holder of the Bosch drive unit, insert the conveyor spiral into the lance, screw the lance onto the lance adapter using the union nut.

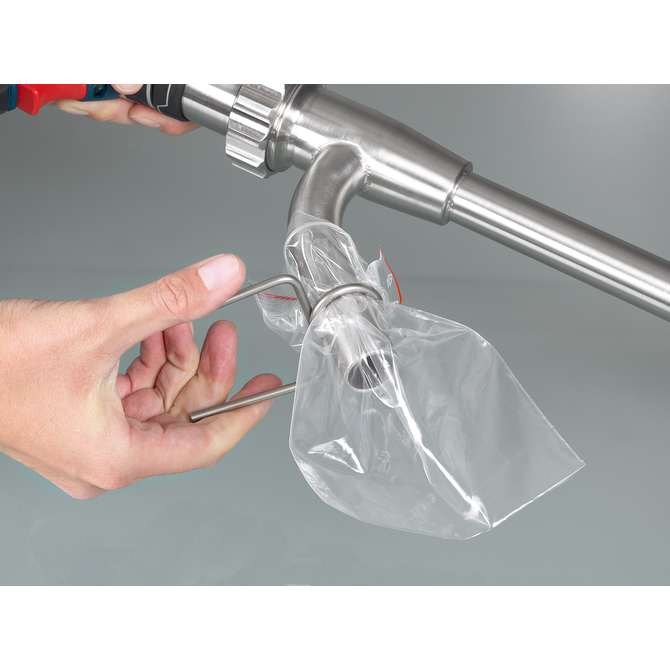

Insert the sample bag into the bag holding clamp, attach the bag holding clamp to the sample outlet.
Set the speed selector to 1 (low speed range) and press the on/off switch.

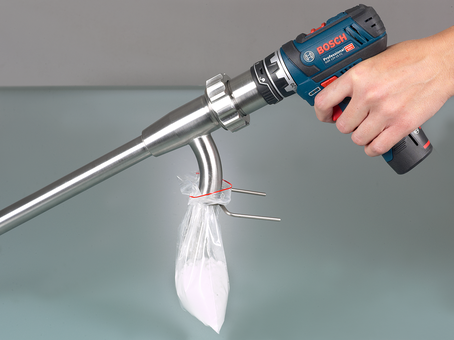

Insert the lance into the sample material, the sample material is conveyed by the lance directly into the sample bag.
To end sampling, release the on/off switch.
Pull the sampling lance out of the sample material.

zer12_v25_en_ex_vxa.pdf

5302-xxxx_powderproof_gebrauchsanleitung.pdf

Sampling lance

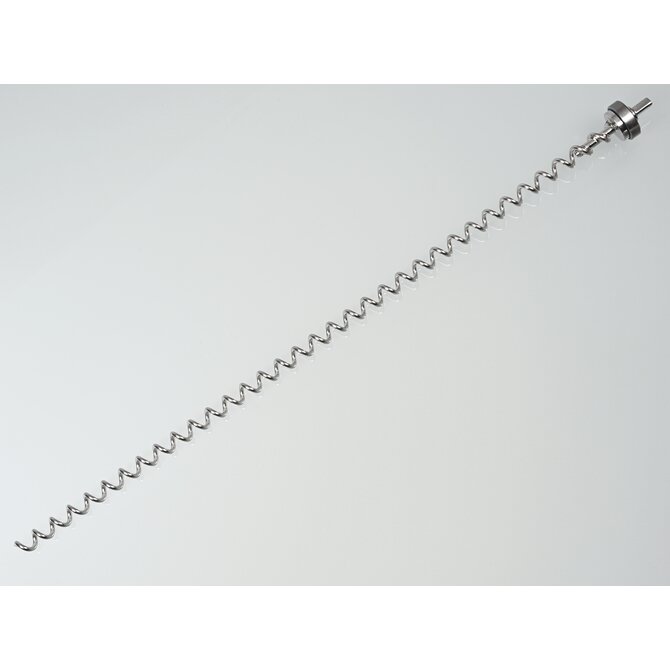

Conveyor spiral
Bosch drive unit
2 x rechargeable battery
Quick battery charger
Adapter for lance
100 x sample bags, 400 ml

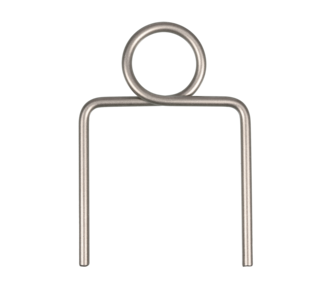

Bag retaining clip
Pliers for retaining ring
Cleaning brush

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

General material

1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304

Collector dimensions

Outer Ø:: 25 mm
Plunge depth:: 600 mm
Total length:: 907 mm

Sampling of

Sample material:: Granules
Grain size:: from 2 to 4 mm

Operating situation

Operating position:: Vertical

To the list of chemical resistance
