PharmaPicker for samples 0.1 - 1.2 ml
- Stainless steel AISI 316L (1.4404)
- Electro-polished
Packaging unit
Piece
Please note
Please order the desired head as an accessory!
Detailed information

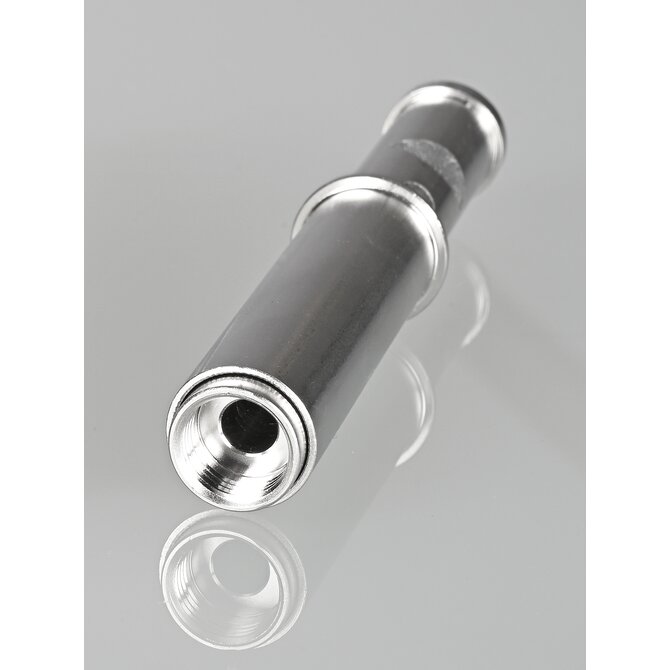

For sampling very small quantities of highly potent, expensive or active powders for analysis. The smallest sample quantities from 0.1 ml to 2.5 ml can be collected with the PharmaPicker. By simply exchanging the volume tip in the collection cylinder for 0.1–1.2 ml or 1.25–2.5 ml, the sampling volume is modified.
The PharmaPicker has a length of 60 cm and can be extended repeatedly by 50 cm or 100 cm, maximum length 3.50 m.
Typical application area of the product
PharmaPicker for sampling highly potent, expensive or active powders.
How to use the product
- Insert the required volume tip into the collection cylinder.
- Insert the PharmaPicker, the disc sleeve closes the collection cylinder automatically.
- The disc sleeve opens the collection cylinder at the required point, and the desired sample is collected.
- Withdraw the PharmaPicker completely.
- Empty the sample directly from the collection cylinder into the analysis container.
- PharmaPicker for samples 0.1 - 1.2 ml
Specifications
General material
1.4404 (316L)
Stainless steel 1.4404, AISI 316L
Collector dimensions
- Plunge depth:
- 570 mm
- Total length:
- 606 mm
- Outer Ø:
- 19 mm
Lance for collection volume
- For collection volumes of:
- 0.1 ml
- For collection volumes up to:
- 1.2 ml
