View in the flip catalogue
To all specifications

Packaging unit

Piece

Detailed information

LiquiSampler for liquids, according to DIN EN ISO 15528. Made of ultra pure and chemically inert PTFE/FEP or PP for contamination-free sampling.

Sampling from open and closed containers, barrels, tanks, silos, water courses. Suitable for all commercially available barrels and containers with opening of at least 32 mm in diameter.

Easy cleaning - all surfaces are free of pores and crevices, preventing accumulation of dirt. Only round screw threads proven in foodstuffs hygiene are used. Disassembly and cleaning are extremely simple.

Typical application area of the product

Sampling from open and closed containers, barrels, tanks, silos, water courses. Suitable for all commercially available barrels and containers with opening of at least 32 mm in diameter.
How to use the product
All-layer sample
  1. Slowly insert the LiquiSampler into the liquid with the button pressed.
  2. Release the push-button, the valve closes.
  3. Withdraw the lance and take out the sample.
Point sampling/bottom sample
  1. Insert the LiquiSampler to the targeted point/to the ground with closed valve.
  2. Press the button - the liquid flows in.
  3. Release the push-button, the valve closes.
  4. Pull out the LiquiSampler, take out the sample.
5330-xxx0_liquisampler_gebrauchsanleitung.pdf 5330-xxx0_liquisampler_gebrauchsanleitung.pdf
  • LiquiSampler PP

Specifications

General material

PP
Polypropylene

Dimensions

Pipe Ø:
25 mm
Immersion depth max.:
60 cm
Total length:
738 mm

Nozzle/tip

Outer Ø:
32 mm
Opening Ø:
17 mm

Sample quantity

Sample quantity:
150 ml

Sampling

Sampling type:
All-layer or target point sample
Sample material:
free-flowing
To the list of chemical resistance

Complementary products

Glass sample bottles Glass sample bottles

Glass sample bottles

Glass sample bottles with blue cap and ring, PP, easy to read scale, large labelling area. Pouring ring for clean working. Ideal for storage and transport of substances.

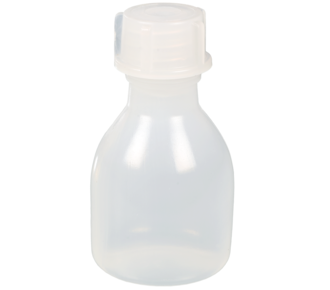

Narrow-necked bio-bottles PE Narrow-necked bio-bottles PE

Narrow-necked bio-bottles PE

The narrow neck bio-bottles are made from Green PE biopolymer. This material has the same excellent properties as conventional PE and can be recycled, but is made from renewable resources instead of fossil fuels.
Narrow neck reagent bottles Narrow neck reagent bottles

Narrow neck reagent bottles

Narrow neck reagent bottles for storing, packaging, sampling or transporting liquids. Transparent HDPE allows the contents to be seen. Blue tamper evident PP screw cap ensures leak proof storage.

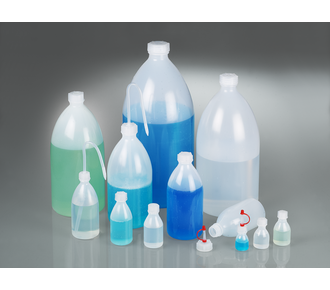

Narrow neck bottles, round Narrow neck bottles, round

Narrow neck bottles, round

Narrow neck bottles with leak proof screw caps are versatile containers. The bottles are made of transparent LDPE for easy visual control of the liquid level. The material is resistant to a wide range of chemicals and solvents.

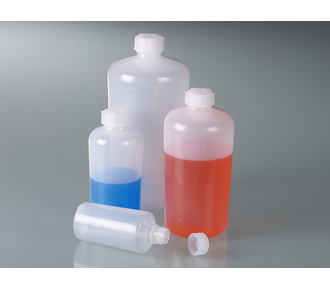

Tall-form bottles Tall-form bottles
