Packaging unit

Piece

Detailed information

Lever pump for petrochemical substances made of stable aluminium cast, valves and pistons are made of plastic (PA).

Typical application area of the product

Lever pump for petrochemical substances.
  • Lever pump aluminium
  • Hose kit, hose length 1.5 m, electrically conductive, with outlet elbow and bend protection spring

Specifications

General material

Al
Aluminium

Further materials

PA
Polyamide

Connection

Connection type:
Thread
Thread:
M 64x4
Version:
External thread

Throughput

Conveying capacity:
25 l/min

Limit values

Viscosity up to:
500 mPa·s

Additional thread

Thread:
G 2 inch
Version:
External thread

Colouring

Colour:
silver

Pump outlet

Outlet hose length:
1.5 m
Outlet type:
Discharge hose

Delivery tube

Immersion depth max.:
84 cm

Filling container

For containers up to:
approx. 220 litres

How to fill

Drive type:
manually operated
Pump type:
Reciprocating piston pump
To the list of chemical resistance

Complementary products

Anti-static set Anti-static set

Anti-static set

When decanting flammable liquids without the machines and containers involved in the process being sufficiently earthed, electrostatic build-up can occur, which for many substances can result in fire or an explosion.

Bürkle’s Anti-static set ensures easy and reliable earthing.

The Anti-static set consists of three colour-coded connecting copper cables with clamps in a handy plastic case.

Similar products

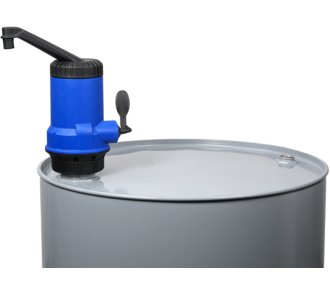

Compact lever pump Compact lever pump
