Lever pump with galvanised steel piston rod
- With integrated barrel screw connection for 1 1/4“ and 2“ fine thread
- Pump capacity 350 ml per stroke
- Immersion depth steplessly variable from 65–90 cm
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Hebelpumpen/Hebelpumpe%20Kolbenstange%20Stahl%20verzinkt/8698/image-thumb__8698__productDetail/5613-0040_Hebelpumpe_blau_freigestellt.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Hebelpumpen/Hebelpumpe%20Kolbenstange%20Stahl%20verzinkt/8359/image-thumb__8359__productDetail/5613-0040_Hebelpumpe_blau.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Hebelpumpen/Hebelpumpe%20Kolbenstange%20Stahl%20verzinkt/8698/image-thumb__8698__productDetailThumb/5613-0040_Hebelpumpe_blau_freigestellt.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Hebelpumpen/Hebelpumpe%20Kolbenstange%20Stahl%20verzinkt/8359/image-thumb__8359__productDetailThumb/5613-0040_Hebelpumpe_blau.png)
Packaging unit
Piece
Please note
Pay attention to the chemical resistance of the materials! See also List of chemical resistance
Detailed information
The lever pump is made of polypropylene with a galvanised steel piston rod and FKM seals.

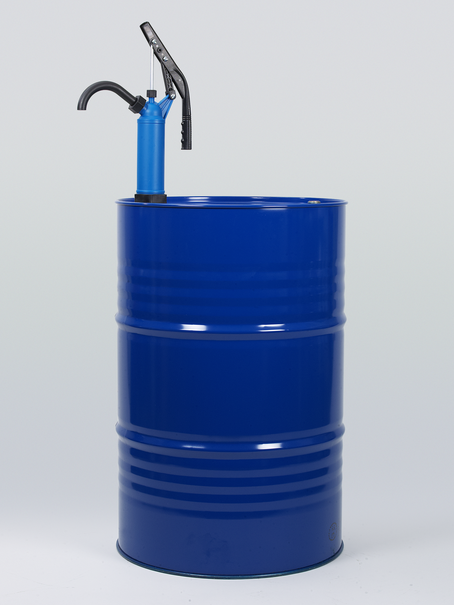

The required quantities can be taken from barrels without great effort with this manual lever pump. Ideal for occasional use.
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Hebelpumpen/Hebelpumpe%20Kolbenstange%20Stahl%20verzinkt/525/image-thumb__525__productUtilization/5613-0040_Hebelpumpe_blau_auf_Fass.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Hebelpumpen/Hebelpumpe%20Kolbenstange%20Stahl%20verzinkt/8360/image-thumb__8360__productUtilization/5613-0040_Hebelpumpe_blau_Anwendung_Labor_01.png)
Typical application area of the product
Applications of the lever pump: water, lubricants, light oils, water-based chemicals and light acids and caustic solutions.
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Hebelpumpen/Hebelpumpe%20Kolbenstange%20Stahl%20verzinkt/512/image-thumb__512__tabTeaserImage/5613-0040_Hebelpumpe_blau_Anwendung_Labor_02.png)
- Lever pump with galvanised steel piston rod
Specifications
General material
PP
Polypropylene
General material
FE
Steel
Further materials
FKM, FPM
Fluorine rubber
Colouring
- Colour:
- black/blue
Throughput
- Conveying capacity:
- 350 ml/stroke
Additional thread
- Thread:
- G 2 inch
- Version:
- External thread
Delivery tube
- Immersion depth max.:
- 90 cm
- Immersion depth from:
- 65 cm
- Immersion depth up to:
- 90 cm
Connection
- Connection type:
- Thread
- Thread:
- G 1 1/4 Zoll
- Version:
- External thread
Limit values
- Viscosity up to:
- 500 mPa*s
Pump outlet
- Outlet type:
- Discharge tube
