Detailed information

Sampler for deep-frozen products in the food and luxury items sector and for semi-solid substances. The very robust hollow drill cuts quickly into the sample material with its sharp sawing crown. A sample cylinder (cross-section sample) can be cut out.

The ice drill can be mounted on your standard commercial drilling machine. The core bit drills quickly and easily down to the desired depth in the frozen material. This makes it possible to cut a representative core sample from all layers of the frozen medium without expending any great effort. Drilling core samples can be taken from a drilling depth of up to 100 or 200 mm, depending on the design. The ejector makes it easy to release the sample from the drill head.

Made of stainless steel AISI 316, the drill is sterilisable and suitable for use with foods.

Typical application area of the product

The ice drill is ideal for quality control in the food and animal feed industries and is also suitable for example for sampling frozen meat for meat inspections. Other deep-frozen substances can be sampled easily as well with the sampling drill, for example frozen liquids.
zer12_v25_en_ex_vxa.pdf zer12_v25_en_ex_vxa.pdf
5323-0190_eisbohrer_gebrauchsanleitung.pdf 5323-0190_eisbohrer_gebrauchsanleitung.pdf
  • Ice borer
  • Ejector

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

General material

1.4571
Stainless steel 1.4571, AISI 316Ti

Further materials

1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304

Diameter

Outer Ø:
10 mm
Inside Ø:
8 mm

Dimensions

Length:
130 mm

Drill

Drilling depth:
100 mm
To the list of chemical resistance

Similar products

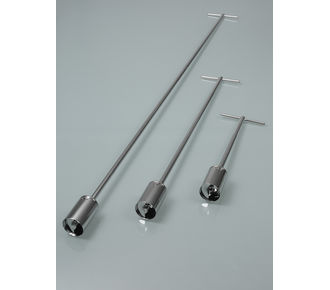

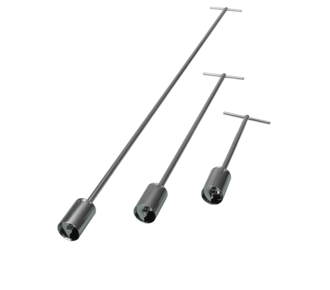

IceSampler IceSampler

IceSampler

Sampler developed for sampling from frozen, highly viscous, paste-like materials such as ice-cream and similar substances. The drill-shaped cutter screws itself into the frozen goods independently when being rotated.

The collection cylinder can easily be detached via a bayonet connection. The sample is then available and can be removed.
