Detailed information

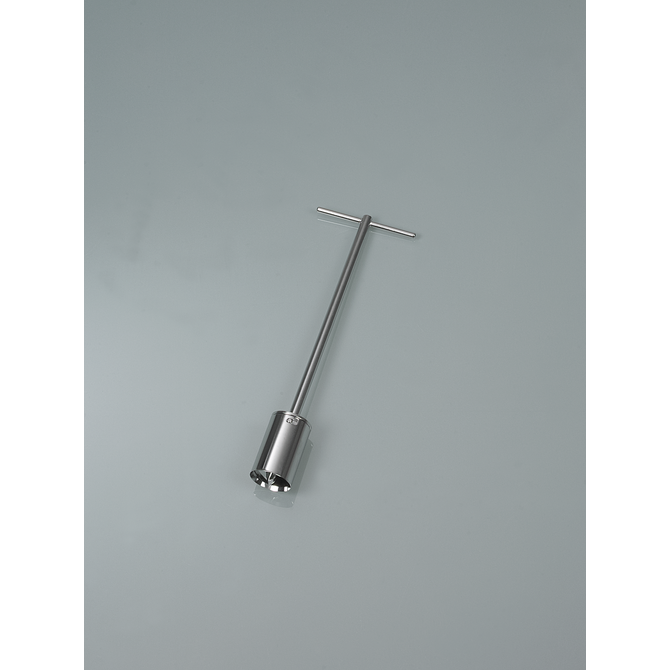

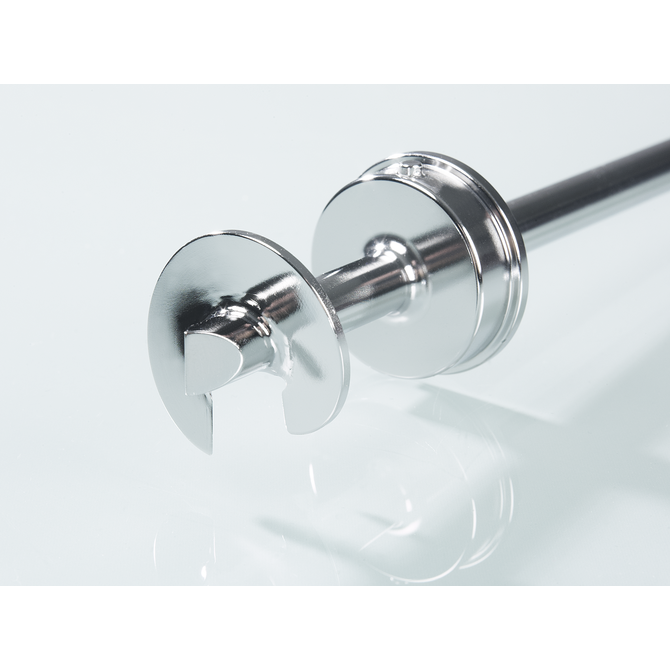

Sampler developed for sampling from frozen, highly viscous, paste-like materials such as ice-cream and similar substances. The drill-shaped cutter screws itself into the frozen goods independently when being rotated.

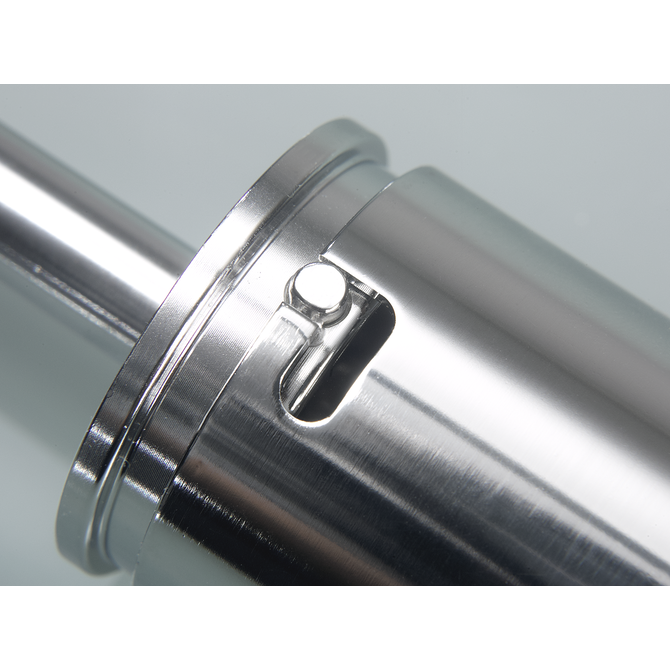

The collection cylinder can easily be detached via a bayonet connection. The sample is then available and can be removed.

Typical application area of the product

Sampler developed for sampling from frozen, highly viscous, paste-like materials such as ice-cream and similar substances.
zer12_v25_en_ex_vxa.pdf zer12_v25_en_ex_vxa.pdf
5339-xxx0_icesampler_gebrauchsanleitung.pdf 5339-xxx0_icesampler_gebrauchsanleitung.pdf
  • IceSampler

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

Diameter

Outer Ø:
38 mm
Inside Ø:
35 mm

Dimensions

Length:
300 mm
Width:
100 mm

Sample quantity

Sample quantity:
50 ml

Other dimensions

Collection container height:
60 mm
Handle/handle length:
240 mm
To the list of chemical resistance

Similar products

Ice borer Ice borer

Ice borer

Sampler for deep-frozen products in the food and luxury items sector and for semi-solid substances. The very robust hollow drill cuts quickly into the sample material with its sharp sawing crown. A sample cylinder (cross-section sample) can be cut out.

The ice drill can be mounted on your standard commercial drilling machine. The core bit drills quickly and easily down to the desired depth in the frozen material. This makes it possible to cut a representative core sample from all layers of the frozen medium without expending any great effort. Drilling core samples can be taken from a drilling depth of up to 100 or 200 mm, depending on the design. The ejector makes it easy to release the sample from the drill head.

Made of stainless steel AISI 316, the drill is sterilisable and suitable for use with foods.
