Please note

Pay attention to the chemical resistance of the materials! See also List of chemical resistance

Detailed information

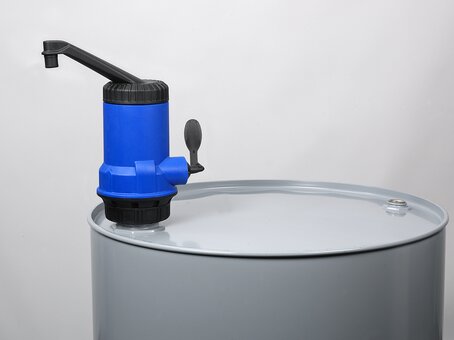

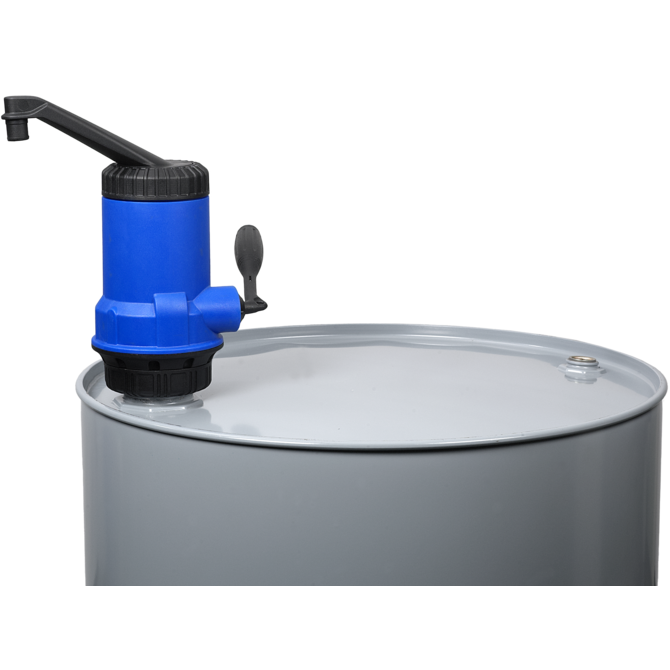

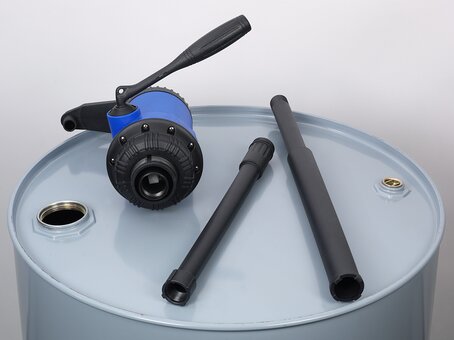

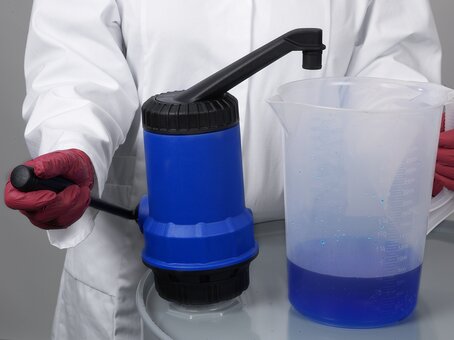

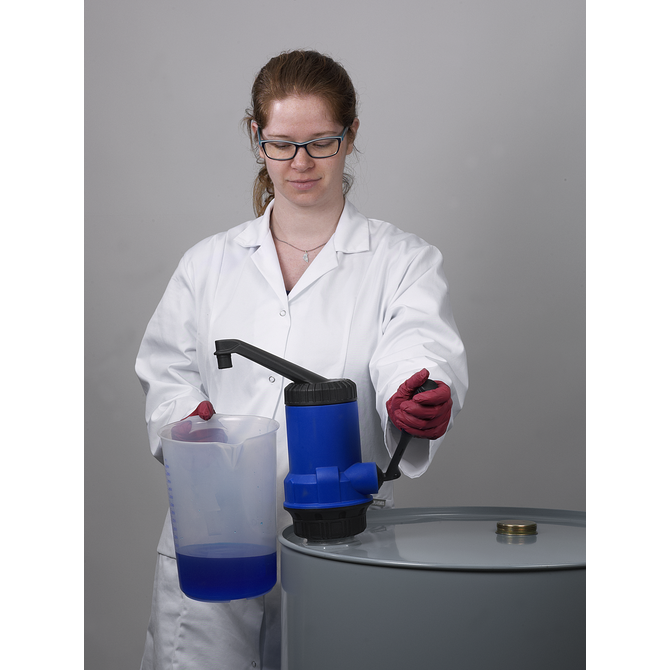

Compact, self-priming polypropylene lever pump suitable for light acids and bases. The telescope tube for lever pump is steplessly extendable up to 100 cm, which means it can be used for barrels from 50 to 200 l.

Typical application area of the product

Compact, self-priming polypropylene lever pump suitable for light acids and bases.
  • Compact lever pump

Specifications

General material

PP
Polypropylene

Further materials

NBR
Nitrile butadiene rubber

Throughput

Conveying capacity:
500 ml/stroke

Colouring

Colour:
black/blue

Delivery tube

Immersion depth max.:
100 cm

Connection

Connection type:
Thread
Thread:
G 2 inch
Version:
External thread

Limit values

Viscosity up to:
500 mPa*s

Pump outlet

Outlet type:
Discharge tube
To the list of chemical resistance
