Packaging unit

Piece

Please note

Pay attention to the chemical resistance of the materials! See also List of chemical resistance

Detailed information

The AccuOne battery-powered barrel pump offers full flexibility and independence from the mains.
The electric barrel pump is equipped with a lightweight and powerful lithium-ion battery without memory effect with auto-stop function to protect against deep discharge. The strong battery capacity allows filling up to about 1500 l per charge.

The Bürkle drum pumps AccuOne and EnergyOne with their unique hybrid system allow fast, flexible and convenient filling whenever and wherever you want.

The electric barrel pumps for small quantities are equipped with two different power supply systems: AccuOne, powered by a high-capacity rechargeable battery, or EnergyOne, with a power cable for direct connection to the power supply.
Unique: the power supply units are interchangeable!

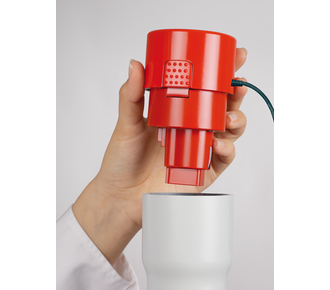

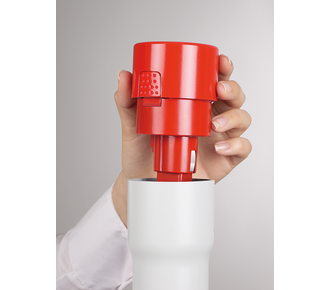

The battery or power supply can be removed by means of a clip and replaced quickly and easily. This means that AccuOne can be used with the power supply and EnergyOne with the battery. An optional interchangeable battery pack also eliminates the need for recharging.

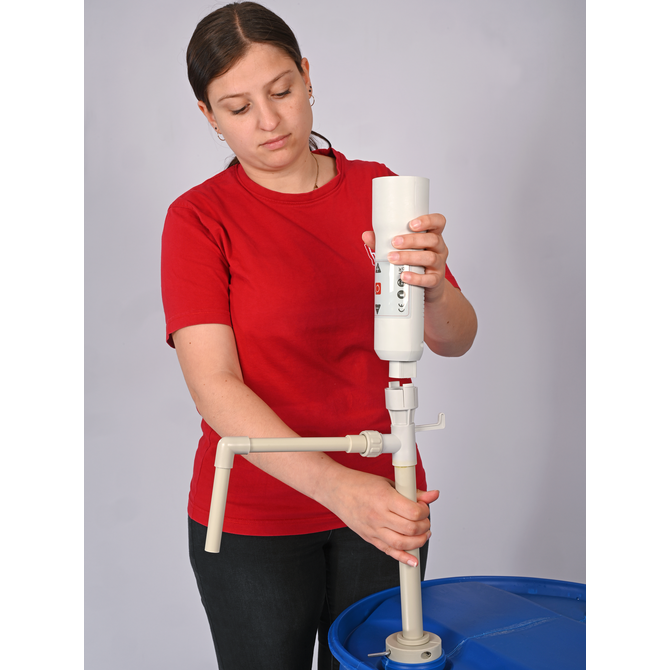

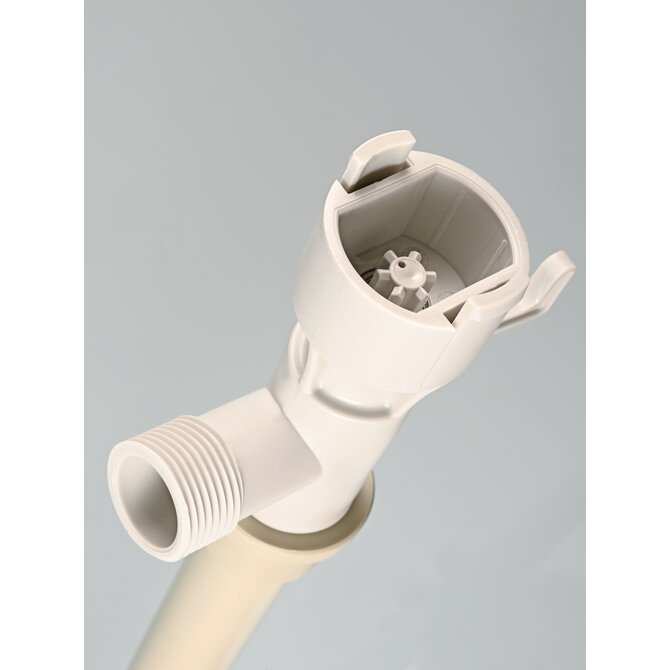

The drive can be easily separated from the pump unit with a clip closure. This makes it possible to fill from different containers at several stationary pumping stations with one drive, without changing media and without having to clean the immersion tubes.
The immersion depth is infinitely variable up to 100 cm and the barrel pumps achieve very good residual emptying of the containers.

The electric barrel pumps, which can be operated with one hand, can stand freely in the barrel or be fixed in the container with a barrel screw fitting as an accessory.

AccuOne and EnergyOne are designed for applications where small quantities of liquid need to be transferred into small containers with narrow openings.
The flow rate can be precisely and continuously controlled from 0.4 l/min to 12 l/min via the touch panel with dirt, water and dust-proof membrane keypad.
Lightweight and powerful, the barrel pumps are manufactured from high quality PP, PTFE and Hastelloy C materials and offer excellent chemical resistance. This makes them suitable for transferring acids and alkalis, chemicals, detergents, etc.

Typical application area of the product

Light and powerful drum pump for small quantities, e.g. in laboratories. Ideal for filling and transferring low viscosity or aqueous acids, alkalis, chemicals, cleaning agents etc. with a viscosity of up to approx. 200 mPas.

How to use the product

Screw on the discharge elbow or discharge hose hand-tight.
Place the reducer and suitable threaded adapter or barrel plug (accessories) on the delivery pipe of the pump.
Insert the delivery pipe into the container and screw on the thread adapter.

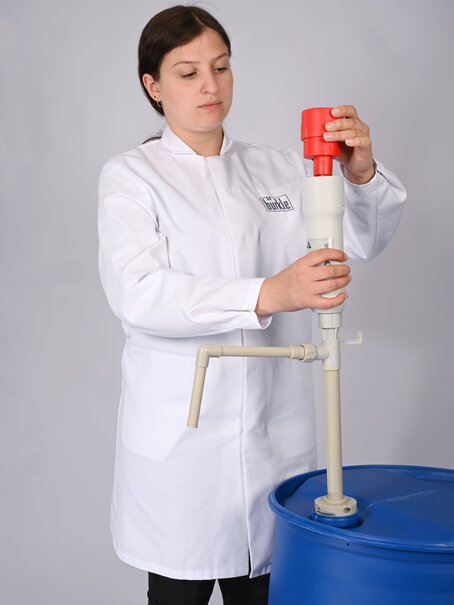

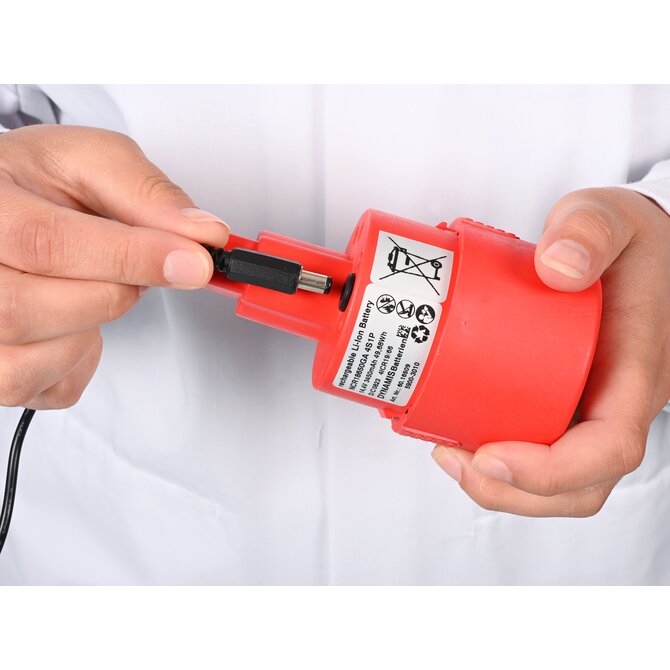

The drive is supplied with power either by the battery or the mains adapter. Connect the charged battery or mains adapter to the pump.
Place a suitable, stable container under the outlet pipe or hose.
Switch the device to operating mode using the on/off button.
Press the ‘+’ button to increase the motor speed. Press the button until the desired flow rate is reached. Press the ‘-’ button to reduce the flow rate.
Press the centre on/off button again to switch off the drive.

5900_accuone_energyone_geb_buch.pdf

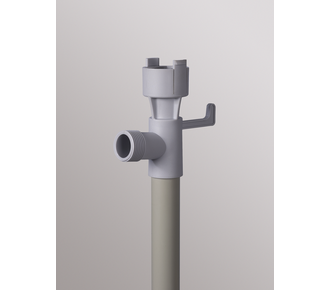

Pumping station

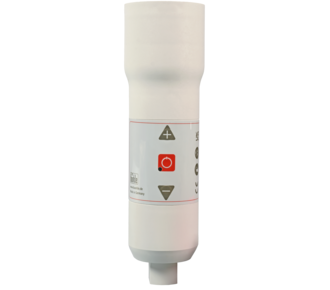

Drive

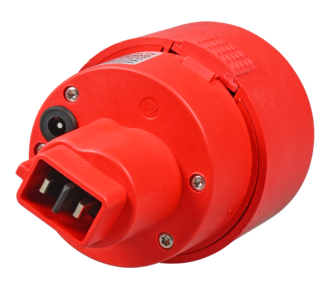

Battery

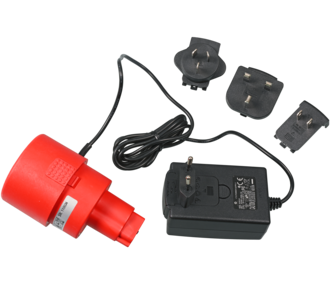

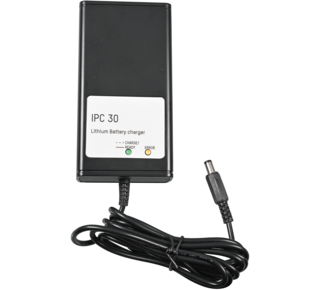

Charger with plug
Plug adapter
Fixed discharge elbow

Specifications

General material

PP
Polypropylene

Further materials

PTFE
Polytetrafluoroethylene

Further materials

Hastelloy C
Hastelloy 2.4610, AISI Alloy C-4

Throughput

Delivery rate min.:: 0.4 l/min
Max. delivery rate:: 12 l/min

Power supply

Battery charging time:: 4 hrs
Plug:: EU, UK

Pump outlet

Outer outlet Ø:: 16 mm
Length of discharge tube:: 203 mm
Outlet type:: Discharge tube

Delivery tube

Immersion depth max.:: 50 cm

Connection

For openings from:: 25 mm
Connection type:: Barrel screw joint

Limit values

Viscosity up to:: 200 mPa·s
Funding level:: 4 mWC

Ø

Immersion tube Ø:: 25 mm

Standards

Protection class:: IP 20

Colouring

Colour:: grey

To the list of chemical resistance

Complementary products

PP barrel screw joint

Barrel screw joint made of PP for secure connection in the barrel in three different thread models. For drawing off liquids that are not flammable.

The container connectors make decanting even easier and safer with their more secure connection to barrels. The connectors secure the pump in the barrel, enable a vertical position change and allow the required air exchange.
