EnergyOne mains-powered barrel pump
Electric drum pump for small quantities
- Ideal for regular filling of small quantities of liquids into small containers with narrow openings
- Unique flexibility - battery and power supply are interchangeable
- Drive unit can be easily disconnected, allowing one drive to power multiple pumping stations
- Excellent chemical resistance
- Powerful filling independent of battery charge
Packaging unit
Piece
Please note
Pay attention to the chemical resistance of the materials! See also List of chemical resistance
Detailed information
The mains-powered barrel pump EnergyOne offers full flexibility and independence from battery charging through direct power connection. Power supply via 230 V mains adapter (international plug adapter included).
The Bürkle drum pumps AccuOne and EnergyOne with their unique hybrid system allow fast, flexible and convenient filling whenever and wherever you want.
The electric barrel pumps for small quantities are equipped with two different power supply systems: AccuOne, powered by a high-capacity rechargeable battery, or EnergyOne, with a power cable for direct connection to the power supply.
Unique: the power supply units are interchangeable!
The battery or power supply can be removed by means of a clip and replaced quickly and easily. This means that AccuOne can be used with the power supply and EnergyOne with the battery. An optional interchangeable battery pack also eliminates the need for recharging.
The drive can be easily separated from the pump unit with a clip closure. This makes it possible to fill from different containers at several stationary pumping stations with one drive, without changing media and without having to clean the immersion tubes.
The immersion depth is infinitely variable up to 100 cm and the barrel pumps achieve very good residual emptying of the containers.
The electric barrel pumps, which can be operated with one hand, can stand freely in the barrel or be fixed in the container with a barrel screw fitting as an accessory.
AccuOne and EnergyOne are designed for applications where small quantities of liquid need to be transferred into small containers with narrow openings.
The flow rate can be precisely and continuously controlled from 0.4 l/min to 12 l/min via the touch panel with dirt, water and dust-proof membrane keypad.
Lightweight and powerful, the barrel pumps are manufactured from high quality PP, PTFE and Hastelloy C materials and offer excellent chemical resistance. This makes them suitable for transferring acids and alkalis, chemicals, detergents, etc.
Typical application area of the product

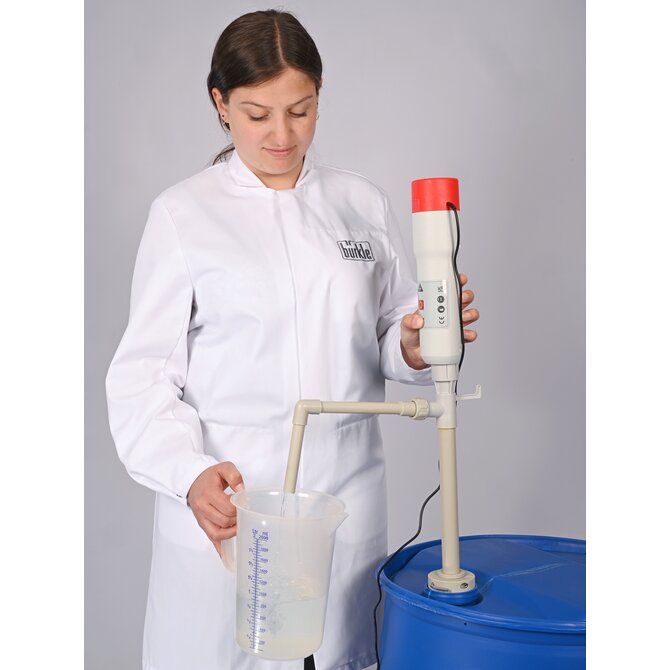

Light and powerful drum pump for small quantities, e.g. in laboratories. Ideal for filling and transferring low viscosity or aqueous acids, alkalis, chemicals, cleaning agents etc. with a viscosity of up to approx. 200 mPas.
How to use the product
- Screw on the discharge elbow or discharge hose hand-tight.
- Place the reducer and suitable threaded adapter or barrel plug (accessories) on the delivery pipe of the pump.
- Insert the delivery pipe into the container and screw on the thread adapter.
- The drive is supplied with power either by the battery or the mains adapter. Connect the charged battery or mains adapter to the pump.
- Place a suitable, stable container under the outlet pipe or hose.
- Switch the device to operating mode using the on/off button.
- Press the ‘+’ button to increase the motor speed. Press the button until the desired flow rate is reached. Press the ‘-’ button to reduce the flow rate.
- Press the centre on/off button again to switch off the drive.
- Pumping station
- Drive
- Power supply unit with plug
- 3x plug adapter
- Fixed discharge bend
Specifications
General material
PP
Polypropylene
Further materials
PTFE
Polytetrafluoroethylene
Further materials
Hastelloy C
Hastelloy 2.4610, AISI Alloy C-4
Connection
- For openings from:
- 25 mm
- Connection type:
- Barrel screw joint
Throughput
- Delivery rate min.:
- 0.4 l/min
- Max. delivery rate:
- 12 l/min
Limit values
- Viscosity up to:
- 200 mPa*s
- Funding level:
- 4 m/WS
Ø
- Immersion tube Ø:
- 25 mm
Standards
- Protection class:
- IP 20
Power supply
- Plug:
- EU, UK, US, AU
Colouring
- Colour:
- grey
Pump outlet
- Outer outlet Ø:
- 16 mm
- Length of discharge tube:
- 203 mm
- Outlet type:
- Discharge tube
Delivery tube
- Immersion depth max.:
- 50 cm
