Packaging unit

Piece

Detailed information

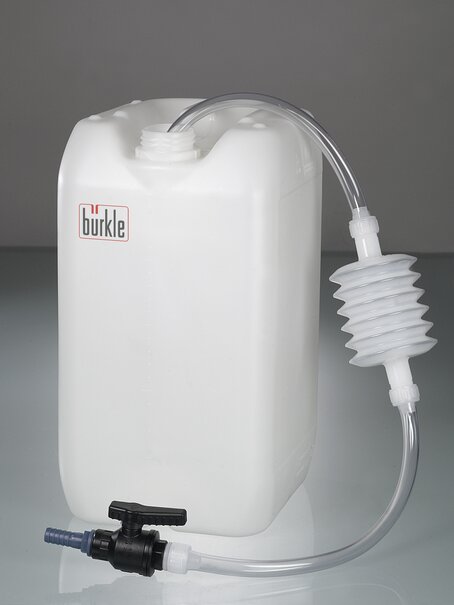

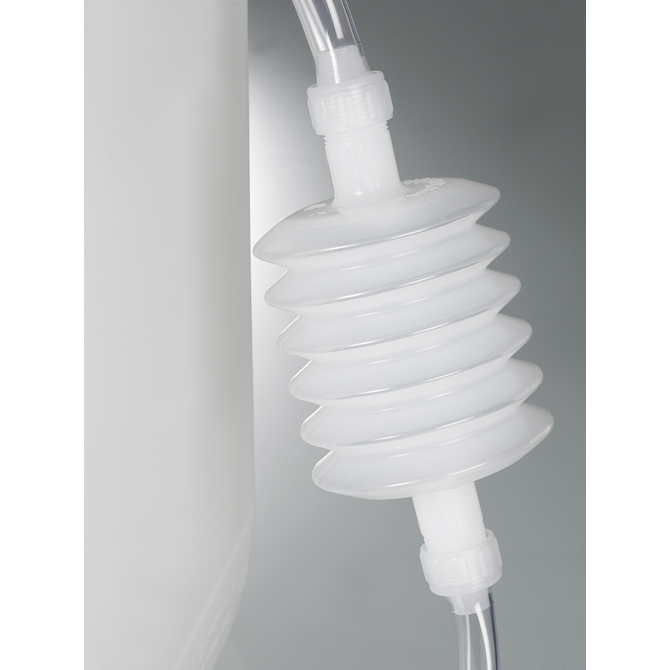

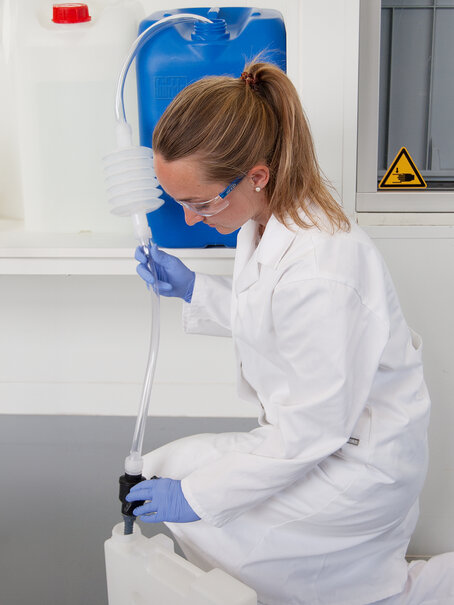

Device for easy operation to quickly fill off watery liquids from containers higher up to containers lower down.

Works according to the siphoning principle: Liquid needs only to be primed once, therefore especially handy for complete emptying of a container.

Typical application area of the product
  • Cost-effective filling unit if drawing-off does not need to take place regularly

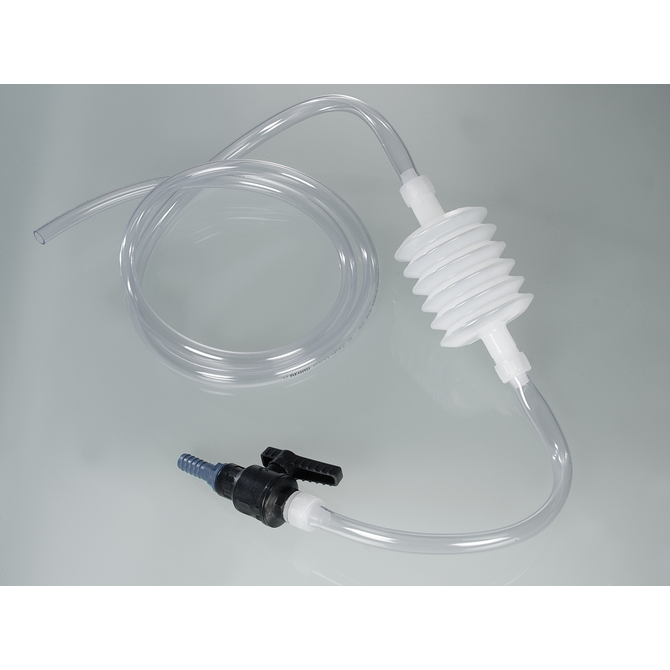

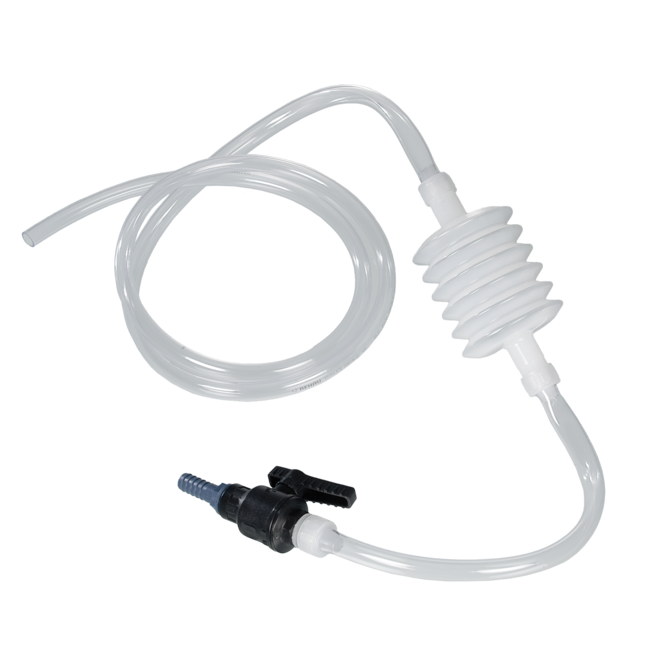

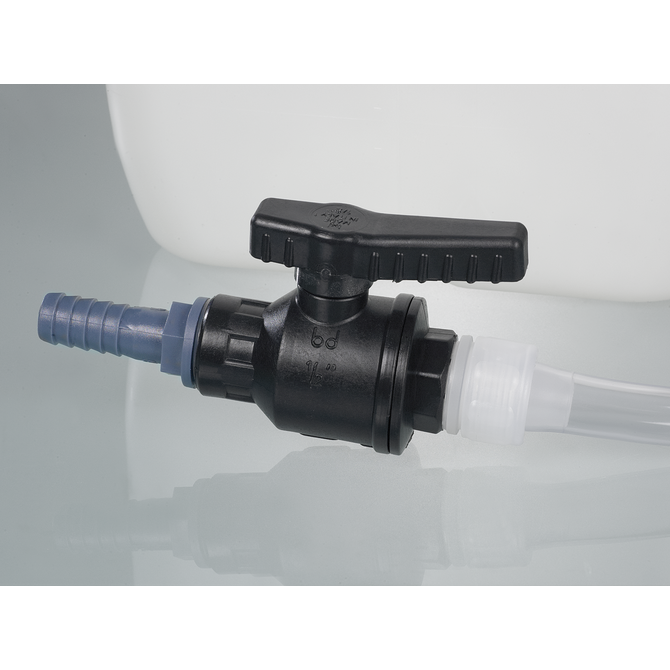

  • Siphon with stopcock

Specifications

General material

PE-LD
Low-density polyethylene (LDPE)

General material

PVC
Polyvinyl chloride

General material

PP
Polypropylene

Throughput

Conveying capacity:
9 l/min

Ø

Immersion tube Ø:
19 mm

Delivery tube

Immersion depth max.:
100 cm

Limit values

Viscosity up to:
500 mPa*s

Connection

For openings from:
19 mm

Pump outlet

Outlet type:
Discharge hose
To the list of chemical resistance
