Packaging unit

Piece

Detailed information

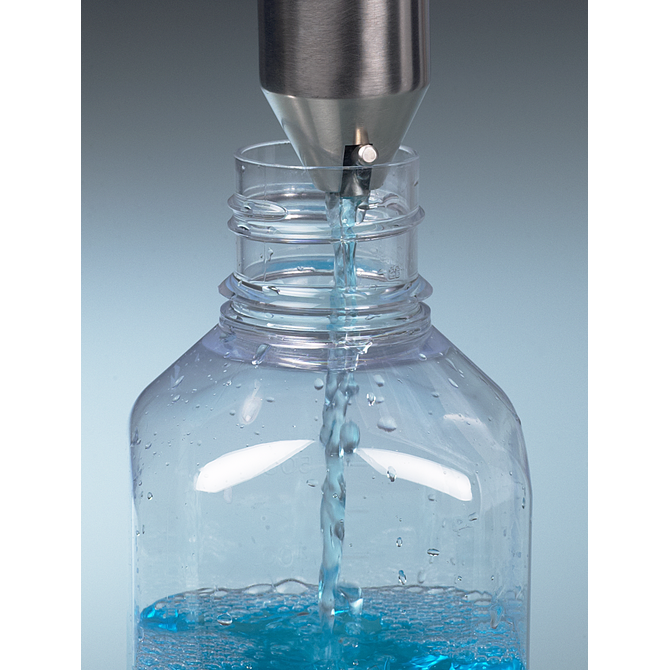

The valve is opened by attaching the sample container to empty the sample.

Easy use with one-handed operation. With discharge funnel for safe filling of the sample bottles.

Typical application area of the product

Sampler for thin to viscous liquids.
zer12_v25_en_ex_vxa.pdf zer12_v25_en_ex_vxa.pdf
5326-000x_fluessigkeits-sammler_aufsetzoeffnung_gebrauchsanleitung.pdf 5326-000x_fluessigkeits-sammler_aufsetzoeffnung_gebrauchsanleitung.pdf

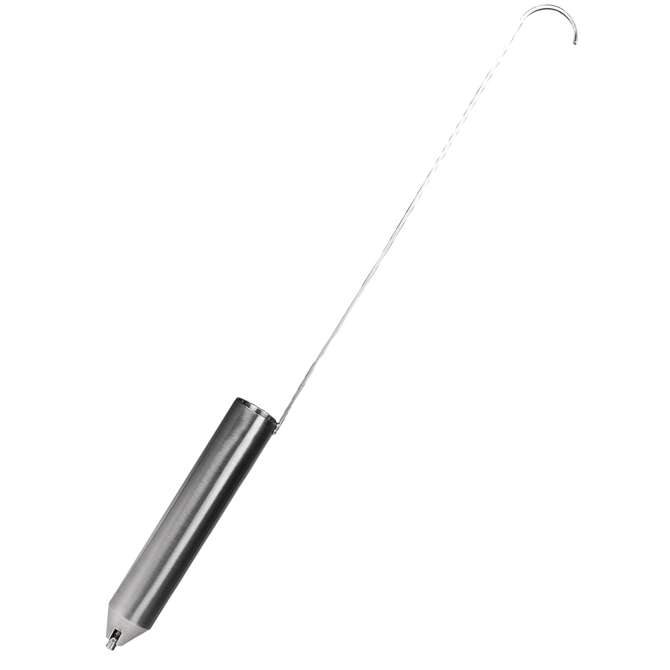

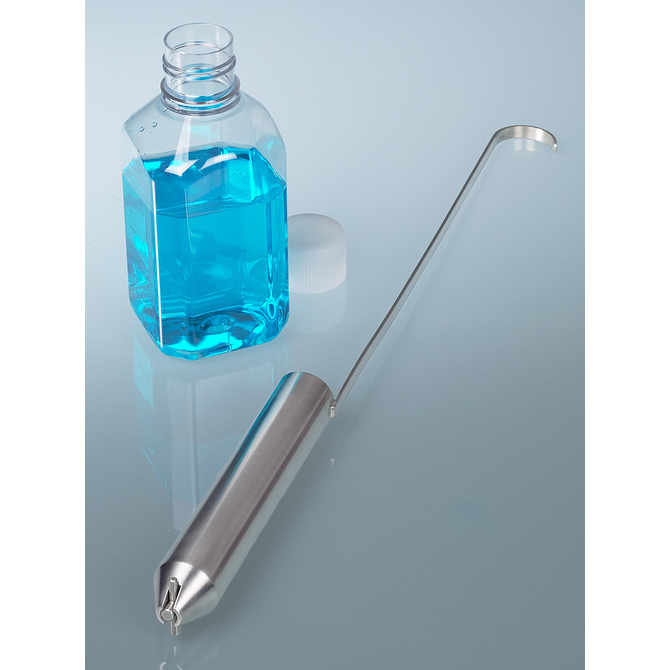

  • Liquid-Sampler, place onto bottle

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

Scoop dimensions

Immersion depth max.:
425 mm
Total length:
455 mm
Outer Ø:
32 mm

Contents of scoop container

Contents:
50 ml

Other dimensions

Collection container height:
106 mm
Handle/handle length:
349 mm
To the list of chemical resistance

Similar products

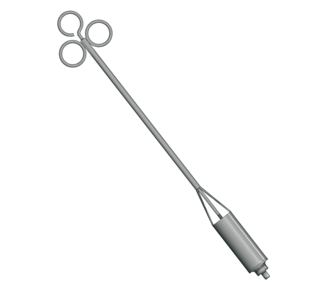

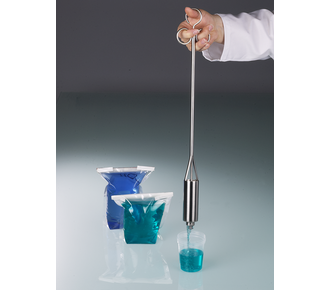

Liquid-Sampler, open with thumb Liquid-Sampler, open with thumb
