To all specifications

Packaging unit

Piece

Detailed information

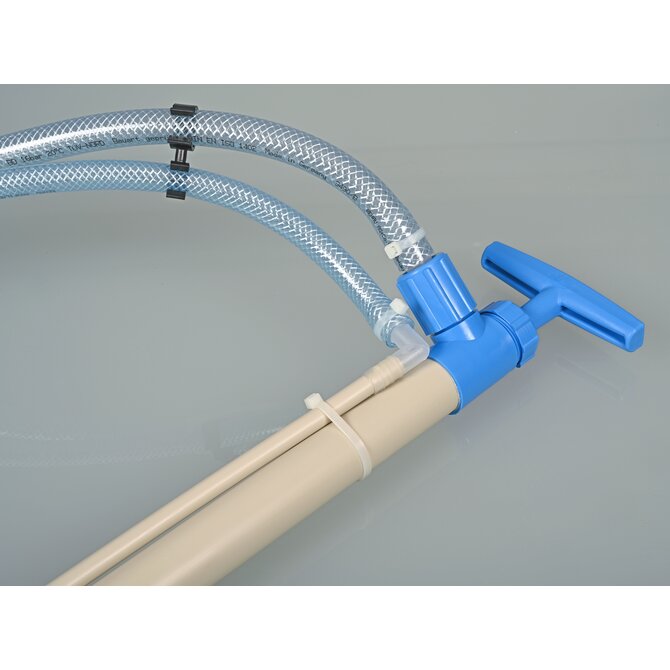

The barrel pump's universal adapter fits onto container openings of 30 - 70 mm, closing tightly. The container screw joints can be screwed into the container with the 3/4" thread and lock nut.

During transfer with normal pumps, it is impossible to prevent vapours escaping into the atmosphere. The gas-shuttle method avoids this. Any vapours produced are returned from the container which is to be filled to the original container via the gas-shuttle pipe. The gas pipe and the liquid pipe are additionally provided with stopcocks.



Typical application area of the product

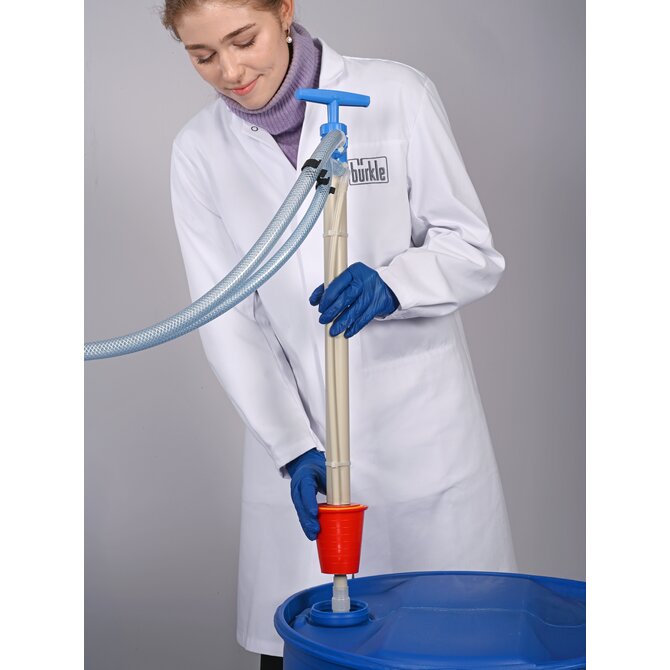

The gas-tight barrel pump enables odour-free transfer. Gas-tight pumps are used for substances that have a strong smell such as ammonia.
  • Gas-tight barrel pump PP

Specifications

General material

PP
Polypropylene

Further materials

PE
Polyethylene

Further materials

PVC
Polyvinyl chloride

Throughput

Conveying capacity:
200 l/min

Ø

Pipe Ø:
22 mm
Immersion tube Ø:
32 mm

Delivery tube

Immersion depth from:
40 cm
Immersion depth up to:
67 cm

Connection

Connection type:
Variable universal stopper
For openings from:
34 mm
For openings up to:
70 mm

Limit values

Viscosity up to:
500 mPa*s

Pump outlet

Outlet type:
Discharge hose
Outlet hose length:
1.2 m
To the list of chemical resistance
