AirJet Mini membrane vacuum pump/compressor
- Weight 1.9 kg, dimensions LxWxH 164/90/141 mm
- Hose connection ID 4 mm
- Maintenance-free, environmentally friendly
- High level of gas tightness
- Very quiet with low vibrations
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Membran-Vakuumpumpe-Kompressor%20AirJet%20Mini/8579/image-thumb__8579__productDetail/5625-200x_airjet_mini_standardausfuehrung_freigestellt.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Membran-Vakuumpumpe-Kompressor%20AirJet%20Mini/8376/image-thumb__8376__productDetail/5625-200x_airjet_mini_standardausfuehrung.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Membran-Vakuumpumpe-Kompressor%20AirJet%20Mini/522/image-thumb__522__productDetail/5625-200x_airjet_mini_rueckseite.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Membran-Vakuumpumpe-Kompressor%20AirJet%20Mini/536/image-thumb__536__productDetail/5625-200x_airjet_mini_mit_geraeuschdaempfer.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Membran-Vakuumpumpe-Kompressor%20AirJet%20Mini/8375/image-thumb__8375__productDetail/5625-200x_airjet_mini_mit_feinregulierungskopf.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Membran-Vakuumpumpe-Kompressor%20AirJet%20Mini/8579/image-thumb__8579__productDetailThumb/5625-200x_airjet_mini_standardausfuehrung_freigestellt.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Membran-Vakuumpumpe-Kompressor%20AirJet%20Mini/8376/image-thumb__8376__productDetailThumb/5625-200x_airjet_mini_standardausfuehrung.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Membran-Vakuumpumpe-Kompressor%20AirJet%20Mini/522/image-thumb__522__productDetailThumb/5625-200x_airjet_mini_rueckseite.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Membran-Vakuumpumpe-Kompressor%20AirJet%20Mini/536/image-thumb__536__productDetailThumb/5625-200x_airjet_mini_mit_geraeuschdaempfer.png)
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Membran-Vakuumpumpe-Kompressor%20AirJet%20Mini/8375/image-thumb__8375__productDetailThumb/5625-200x_airjet_mini_mit_feinregulierungskopf.png)
Packaging unit
Piece
Detailed information
The AirJet Mini single-head membrane vacuum pump is suitable for a variety of applications in the laboratory and industry. The dry running membrane vacuum pump is able to pump, compact and evacuate 100 % oil-free, which means it does not distort results or add impurities, and can also be used as a compressor.
The membrane features a long service life and is available in two versions, EPDM for general applications and PTFE-coated for special applications.
Typical application area of the product
The AirJet Mini is used to pump and evacuate air and neutral or slightly aggressive or corrosive gases and vapours.
![](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Membran-Vakuumpumpe-Kompressor%20AirJet%20Mini/544/image-thumb__544__tabTeaserImage/5625-200x_airjet_mini_anwendung.png)
- AirJet Mini membrane vacuum pump/compressor
Specifications
General material
PPS
Polyphenylene sulphide
General material
EPDM
Ethylene propylene diene monomer rubber
Further materials
FKM, FPM
Fluorine rubber
Throughput
- Conveying capacity:
- 6 l/min
Material
- Membranes:
- EPDM
Vacuum
- Pressure max.:
- 2.4 cash
- Negative pressure approx.:
- 100 mbar
Dimensions
- Length:
- 164 mm
- Width:
- 90 mm
- Height:
- 141 mm
Connection
- Connection type:
- Tube nozzle
- Connection Ø:
- 4 mm
![AirJet Mini fine regulation head](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Feinregulierkopf%20AirJet%20Mini/8527/image-thumb__8527__productCard/5625-2002_feinregulierkopf_airjet_mini_freigestellt.png)
AirJet Mini fine regulation head
Fine regulation head to regulate the vacuum. Scaling: increments of 50/100 mbar.
![AirJet Mini sound absorber](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Ger%C3%A4uschd%C3%A4mpfer%20AirJet%20Mini/8446/image-thumb__8446__productCard/5625-2003_geraeuschdaempfer_airjet_mini_freigestellt.png)
AirJet Mini sound absorber
The sound absorber for AirJet Mini is mounted on the pressure side, connection thread G 1/8.
![Magnetic centrifugal pump](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Magnetkreiselpumpen/8383/image-thumb__8383__productCard/5766-000x_magnetkreiselpumpen.png)
Magnetic centrifugal pump
The magnetic centrifugal pumps are suitable for transferring acids, alkalis, alkaline and electroplating baths, photography chemicals as well radioactive, sterile and highly corrosive liquids. The drive, via contact-free magnetic force transfer, requires no dynamic shaft seals and this makes a hermetically sealed pump housing possible, which means that it cannot leak.

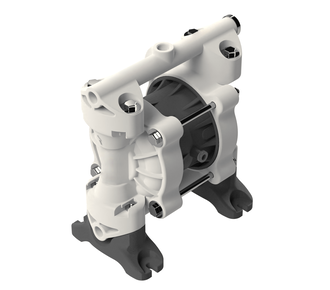

![Double diaphragm pump 1/4"](https://buerkle-pimcore-prod.s3.eu-central-1.amazonaws.com/thumbnails/products/Doppelmembranpumpe%201-4-/8526/image-thumb__8526__productCard/5765-000x_Doppelmembranpumpe_1-4_freigestellt.png)
