Name: Sampler for liquid samples UniSampler "Ex"
SKU: 5314-3000
Price: 426.05 EUR

bk.product.specification-anchor-link.label

bk.product.packaging-unit.label

Piece

bk.product.warnings.headline

Caution! When handling flammable, highly flammable liquids, the explosion protection guidelines must be observed. All parts must be earthed, use anti-static set!

Detailed information

The sampler was specially developed for sampling flammable liquids of hazard class AI (VbF, e.g. petrol). The glass bottle and hose are electrically connected and earthed via an earth cable.

Sampler for liquid samples from a precisely predetermined depth, with manual vacuum pump. Sampling by means of a vacuum pump has the advantage that the liquid only comes into contact with the suction hose and the original sample bottle.

bk.product.scope_of_application.tab_headline

Sampler for liquid samples from a precisely predetermined depth, with manual vacuum pump.

EX

5314-3000_zer05_v03_en_ex_ptb.pdf

5314-3000_unisampler_ex_gebrauchsanleitung.pdf

Transport case
4 m hose (NBR)
Glass bottle 1000 ml
Bottle adapter
Bottle base
Vacuum pump
Earthing cable
Brass hose weight

bk.product.specifications.title

bk.product.general_material.label

GL
Glass

bk.product.general_material.label

NBR
Nitrile butadiene rubber

bk.product.general_material.label

MS
Brass

bk.product.detail_material.label

PP
Polypropylene

bk.product.detail_material.label

PVC
Polyvinyl chloride

Dimensions

Länge:: 448 mm
Breite:: 411 mm
Höhe:: 107 mm

Tubing length

Länge Schlauch:: 4 m

Contents of collection container

Inhalt:: 1000 ml

Vacuum sampler

Probenahmeart:: Target point sample
Proben Material:: liquid
Besondere Eigenschaften Vakuum-Probenehmer:: Completely transportable in a case,Can be used for flammable liquids

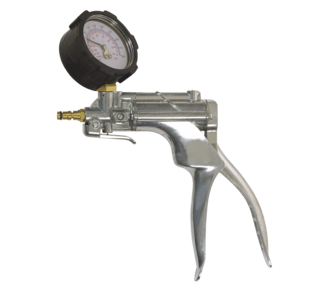

Vacuum pump also available in aluminum on request.

bk.product.optional_accessories.tab_title

Glass sample bottles

Glass sample bottles with blue cap and ring, PP, easy to read scale, large label area. Pouring ring for clean working. Ideal for storing and transporting substances.
