bk.product.warnings.headline

Not suitable for hydrochloric acid!

Pay attention to the chemical resistance of the materials! See also "List of chemical resistance"

Detailed information

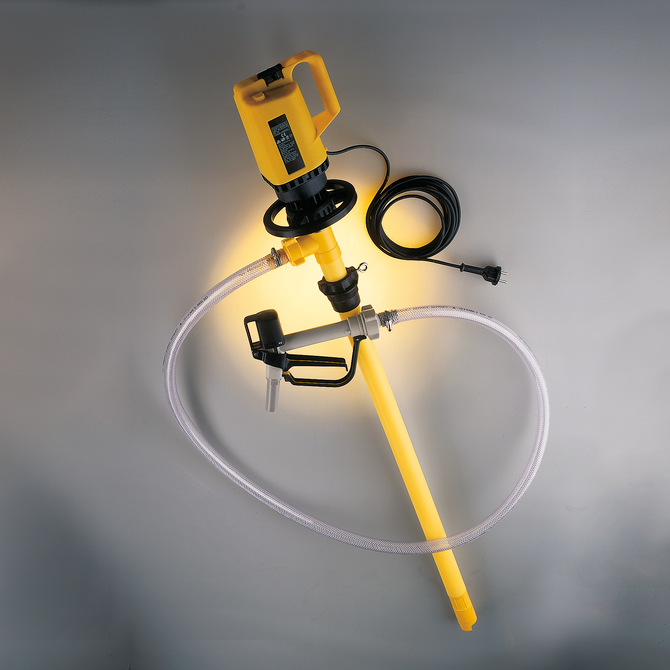

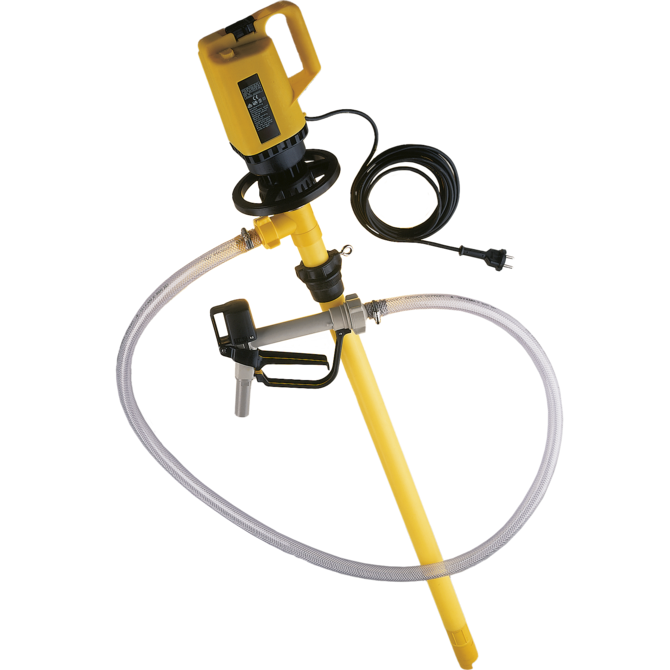

Barrel pump for weaker acids, such as phosphoric acid, chromic acid, battery acid, citric acid, etc.

  • Drum pump for acids and alkalis

bk.product.specifications.title

bk.product.general_material.label

PP
Polypropylene

bk.product.general_material.label

Hastelloy C
Hastelloy 2.4610, AISI Alloy C-4

bk.product.general_material.label

PVC
Polyvinyl chloride

Connection

Anschlussart:
Barrel screw joint
Gewinde:
G 1 1/4 Zoll
Gewindeausführung:
External thread

Throughput

Förderleistung ca.:
85 l/min

Limit values

Viskosität bis ca.:
500 mPa·s
Förderhöhe ca.:
19 mWC

Ø

Tauchrohr-Ø:
41 mm

Coloring

Farbe:
yellow

Pump outlet

Länge Auslaufschlauch:
2 m
Auslauftyp:
Discharge hose

Delivery tube

Eintauchtiefe:
100 cm

Filling container

Eintauchtiefe justieren:
Immersion depth infinitely adjustable
Für Behälter bis:
approx. 220 liters

How to fill

Antriebsart:
electric
Pumpentyp:
Centrifugal pump

bk.product.optional_accessories.tab_title

Flow meter PP Flow meter PP

Flow meter PP

Compact electronic flow counter for electrical barrel and container pumps. For thin fluid media.
